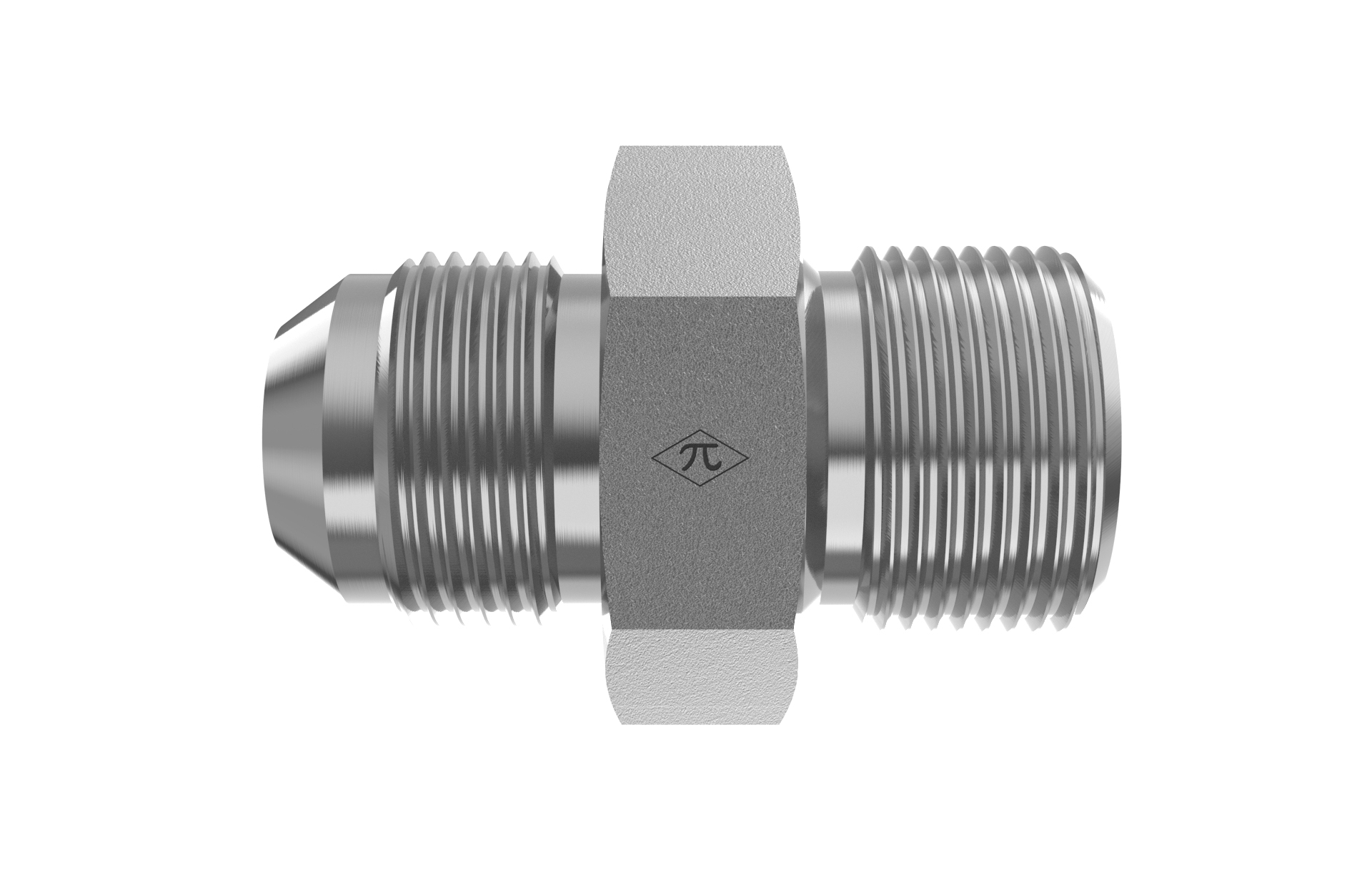

7002 product image

HGW HYDRAULICS

7002-32-40-BS

2" Male JIC x 2-1/2" Male BSPP

7002-32-40-BS is a 2" Male JIC x 2-1/2" Male BSPP in the 7002-BS Series. For connecting a 37° flared tube or line to a male BSPP (parallel) port using a bonded seal.

  • Steel
  • Trivalent Zinc
  • Adapter
$1,023.04
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeMale BSPP
Pipe Size2-1/2"
StandardBS 5200 / ISO 228
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight2.06 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
