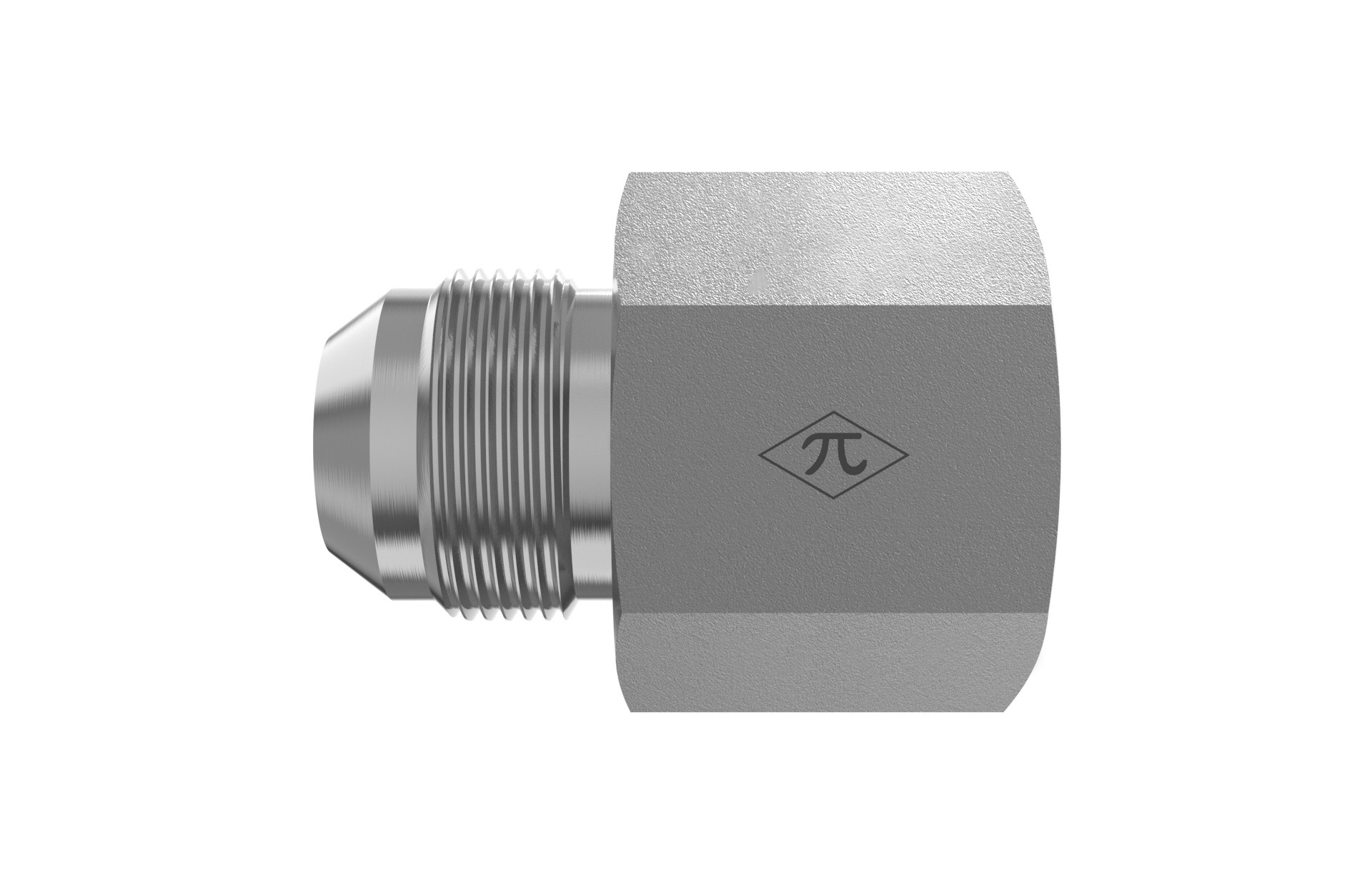

7003 product image

HGW HYDRAULICS

7003-05-02

5/16" Male JIC x 1/8" Female BSPP

7003-05-02 is a 5/16" Male JIC x 1/8" Female BSPP in the 7003 Series. For connecting a 37° flared tube or line to a female BSPP (parallel) port.

  • Steel
  • Trivalent Zinc
  • Adapter
$50.40
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeFemale BSPP
Pipe Size1/8"
StandardBS 5200 / ISO 228
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.07 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
