HGW HYDRAULICS

7005-08-S08-16-SS

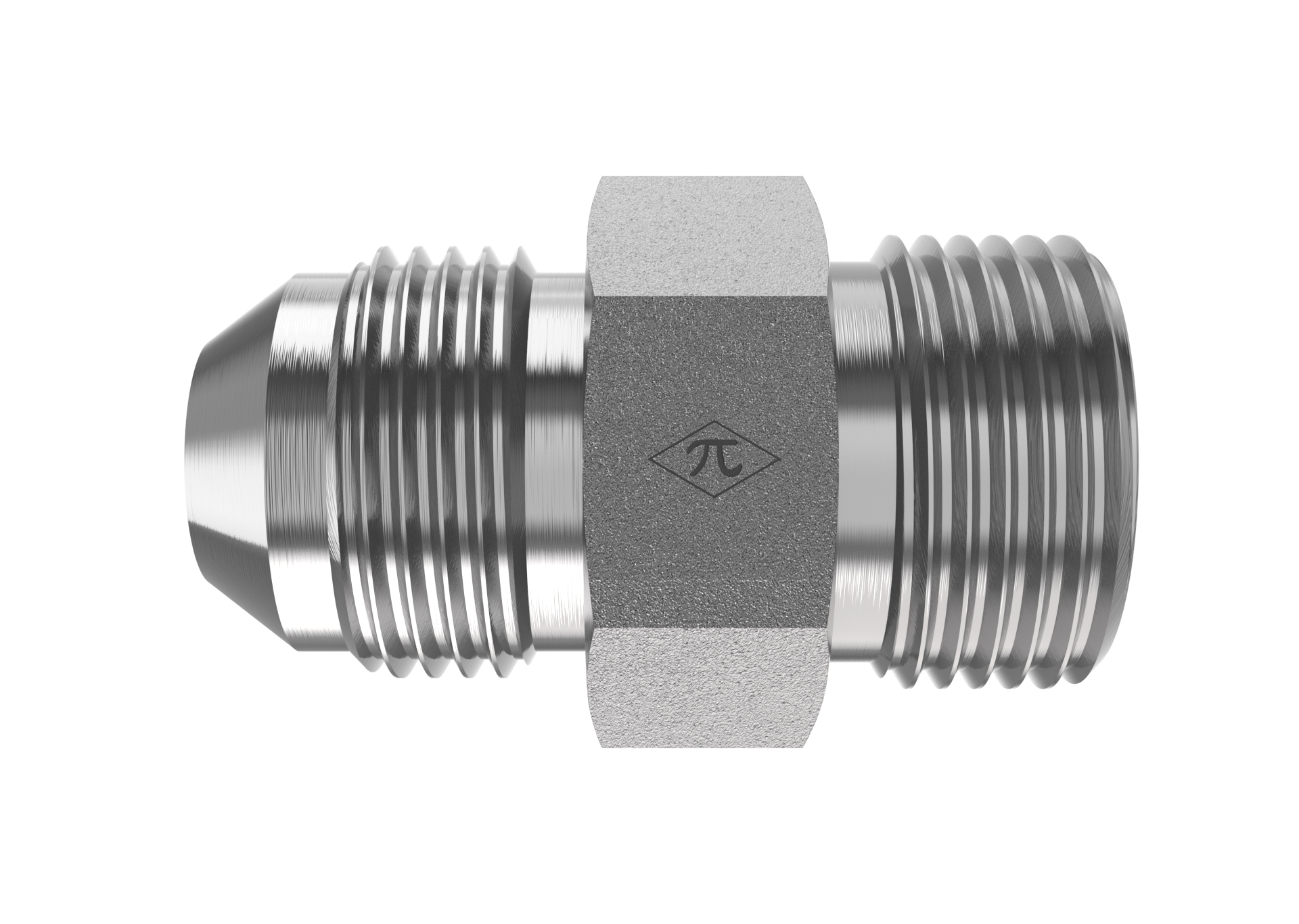

1/2" Male JIC x 8mm Male DIN

7005-08-S08-16-SS is a 1/2" Male JIC x 8mm Male DIN in the 7005-DIN-HEAVY Series. For connecting 37° flared lines to Heavy Series DIN compression tube fittings.

  • Stainless Steel
  • Passivated
  • Straight
$30.64
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeMale DIN
Tube OD8mm
StandardISO 8434-1
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeStraight
Weight0.14 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
