HGW HYDRAULICS

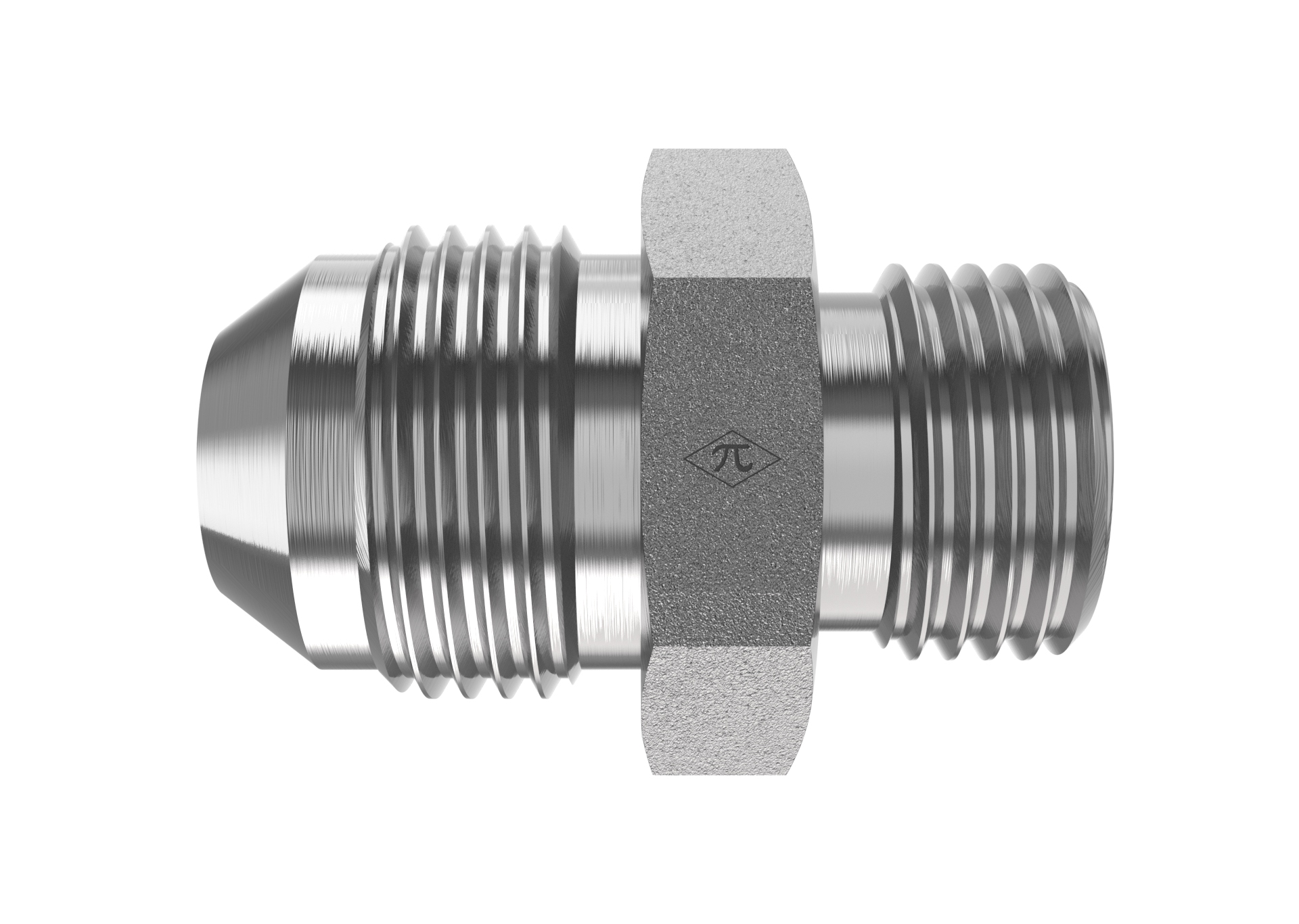

7005-12-L18-26-SS

3/4" Male JIC x 18mm Male DIN

7005-12-L18-26-SS is a 3/4" Male JIC x 18mm Male DIN in the 7005-DIN-LIGHT Series. For connecting 37° flared lines to Light Series DIN compression tube fittings.

  • Stainless Steel
  • Passivated
  • Straight
$62.88
(0) Write a Review
SKU:
7005-12-L18-26-SS

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale DIN
Tube OD18mm
StandardISO 8434-1
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeStraight
Weight0.24 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
