HGW HYDRAULICS

7005-16-L22-30

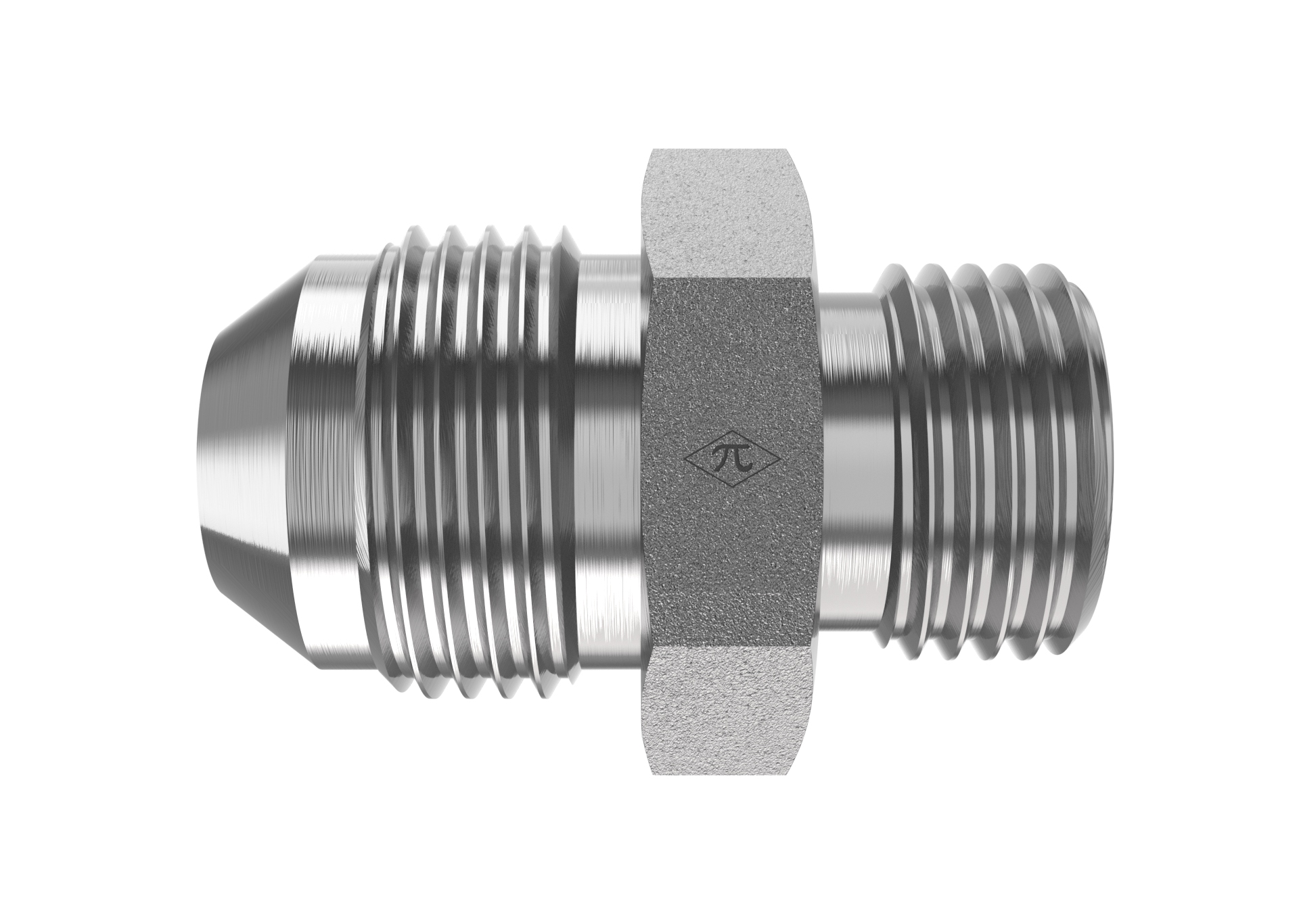

1" Male JIC x 22mm Male DIN

7005-16-L22-30 is a 1" Male JIC x 22mm Male DIN in the 7005-DIN-LIGHT Series. For connecting 37° flared lines to Light Series DIN compression tube fittings.

  • Steel
  • Trivalent Zinc
  • Straight
$66.40
(0) Write a Review
SKU:
7005-16-L22-30

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale DIN
Tube OD22mm
StandardISO 8434-1
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Weight0.36 lb
Cross References
Aeroquip15.063-22-16

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
