HGW HYDRAULICS

7005-16-L28-36

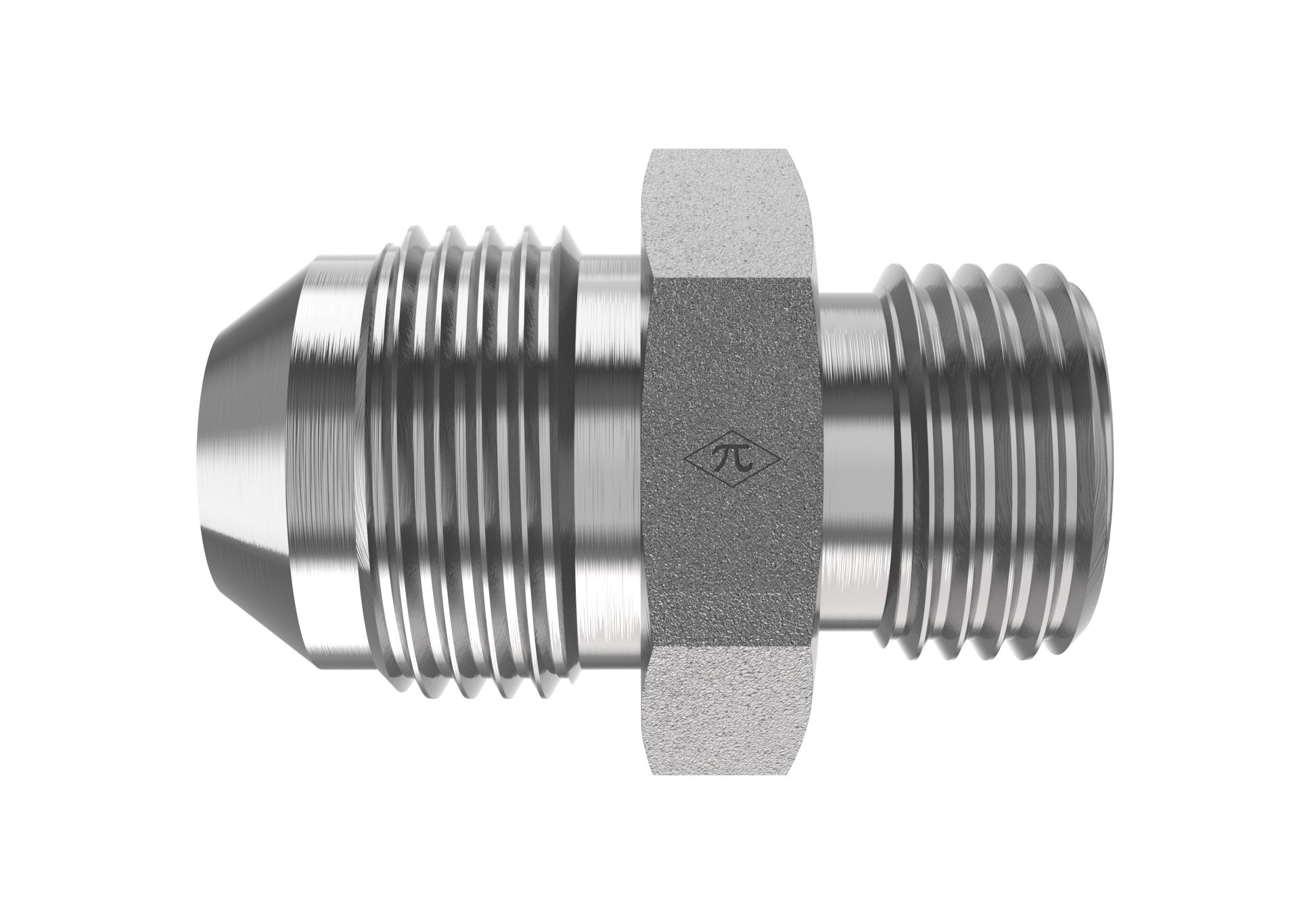

1" Male JIC x 28mm Male DIN

7005-16-L28-36 is a 1" Male JIC x 28mm Male DIN in the 7005-DIN-LIGHT Series. For connecting 37° flared lines to Light Series DIN compression tube fittings.

  • Steel
  • Trivalent Zinc
  • Straight
$35.99
(0) Write a Review
SKU:
7005-16-L28-36

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale DIN
Tube OD28mm
StandardISO 8434-1
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Weight0.37 lb
Cross References
Aeroquip15.063-28-16

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
