HGW HYDRAULICS

7005-16-L35-45-SS

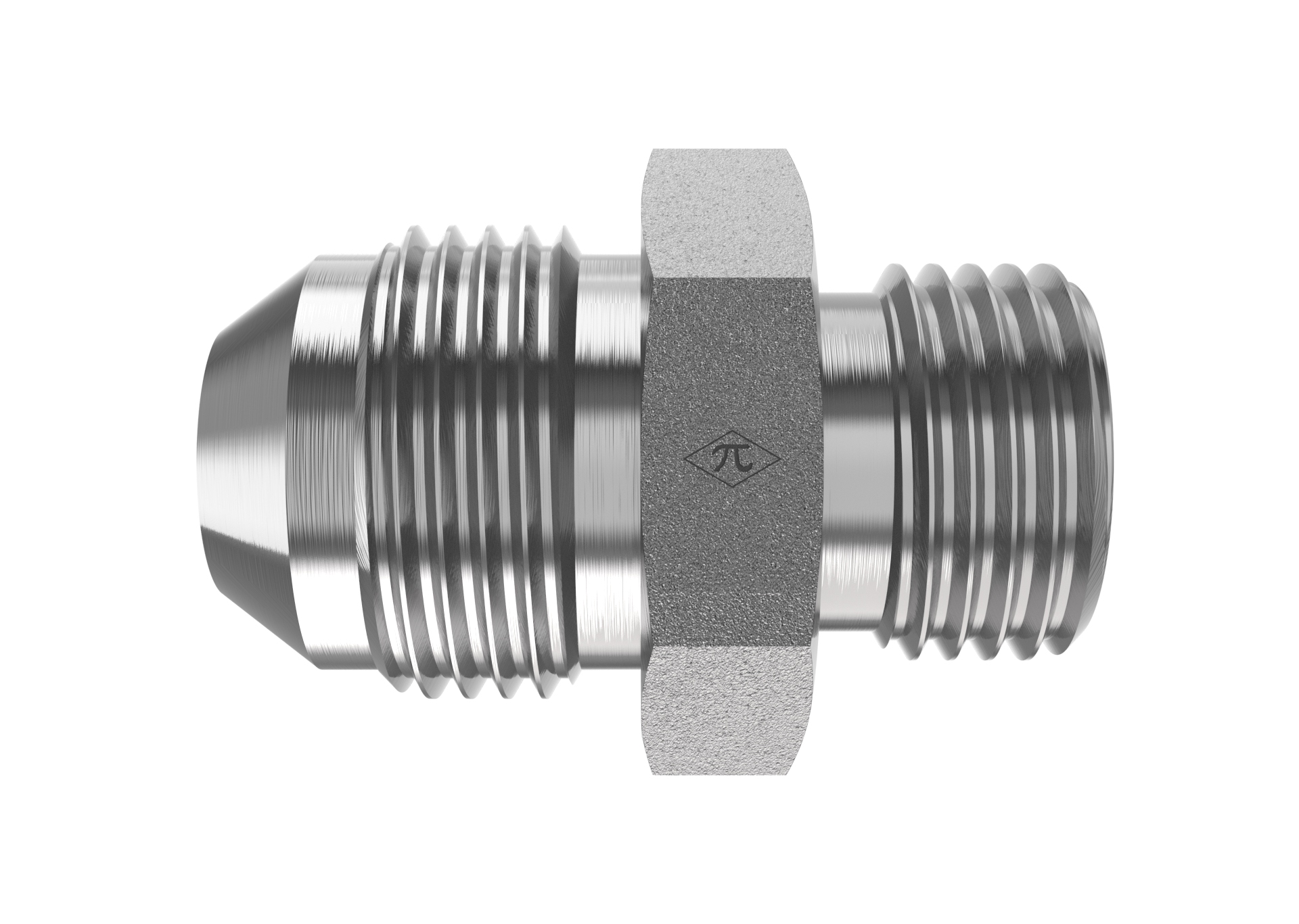

1" Male JIC x 35mm Male DIN

7005-16-L35-45-SS is a 1" Male JIC x 35mm Male DIN in the 7005-DIN-LIGHT Series. For connecting 37° flared lines to Light Series DIN compression tube fittings.

  • Stainless Steel
  • Passivated
  • Straight
$178.66
(0) Write a Review
SKU:
7005-16-L35-45-SS

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale DIN
Tube OD35mm
StandardISO 8434-1
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeStraight
Weight0.50 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
