HGW HYDRAULICS

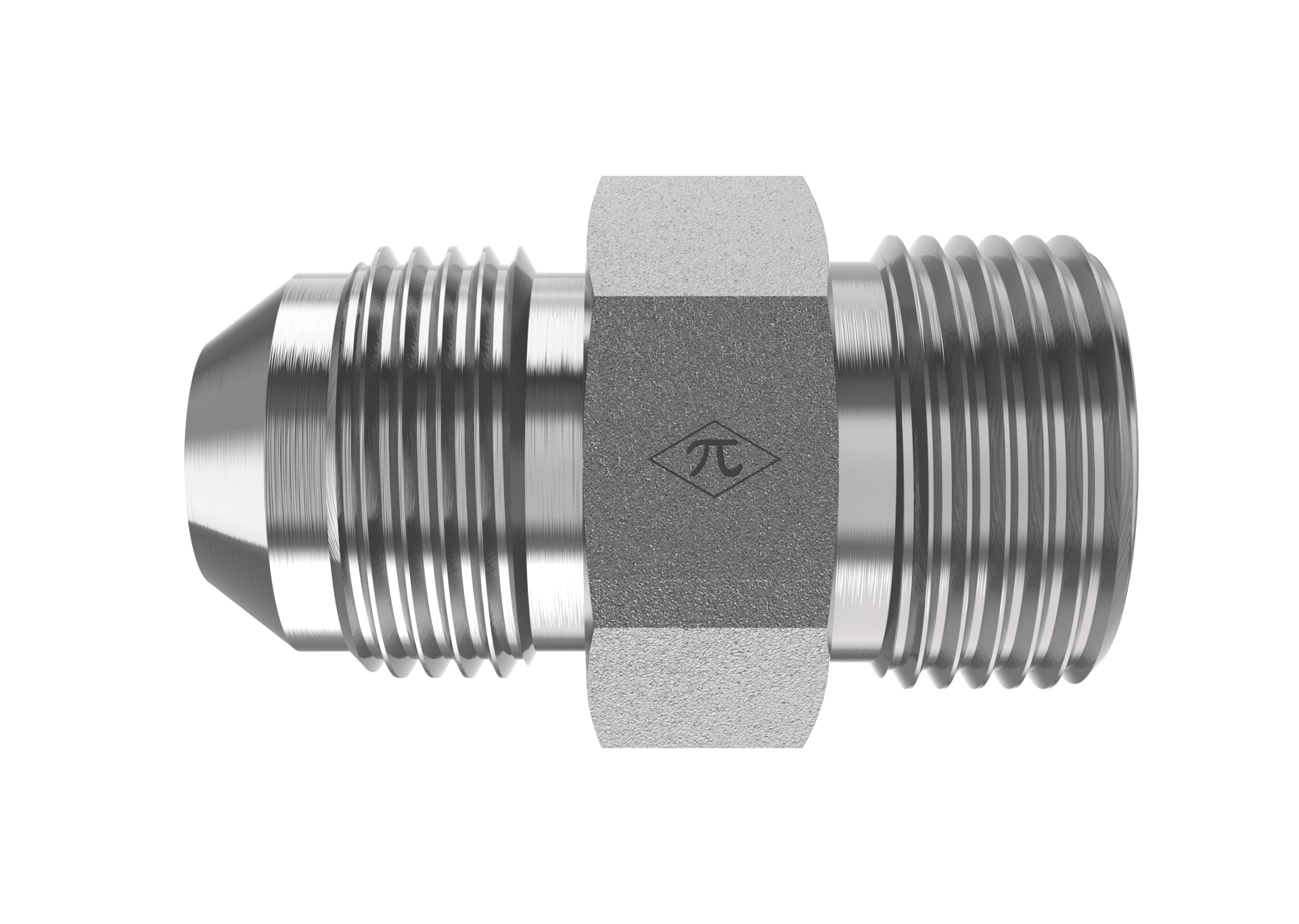

7005-24-S38-52-SS

1-1/2" Male JIC x 38mm Male DIN

7005-24-S38-52-SS is a 1-1/2" Male JIC x 38mm Male DIN in the 7005-DIN-HEAVY Series. For connecting 37° flared lines to Heavy Series DIN compression tube fittings.

  • Stainless Steel
  • Passivated
  • Straight
$382.56
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeMale DIN
Tube OD38mm
StandardISO 8434-1
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeStraight
Weight1.21 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
