HGW HYDRAULICS

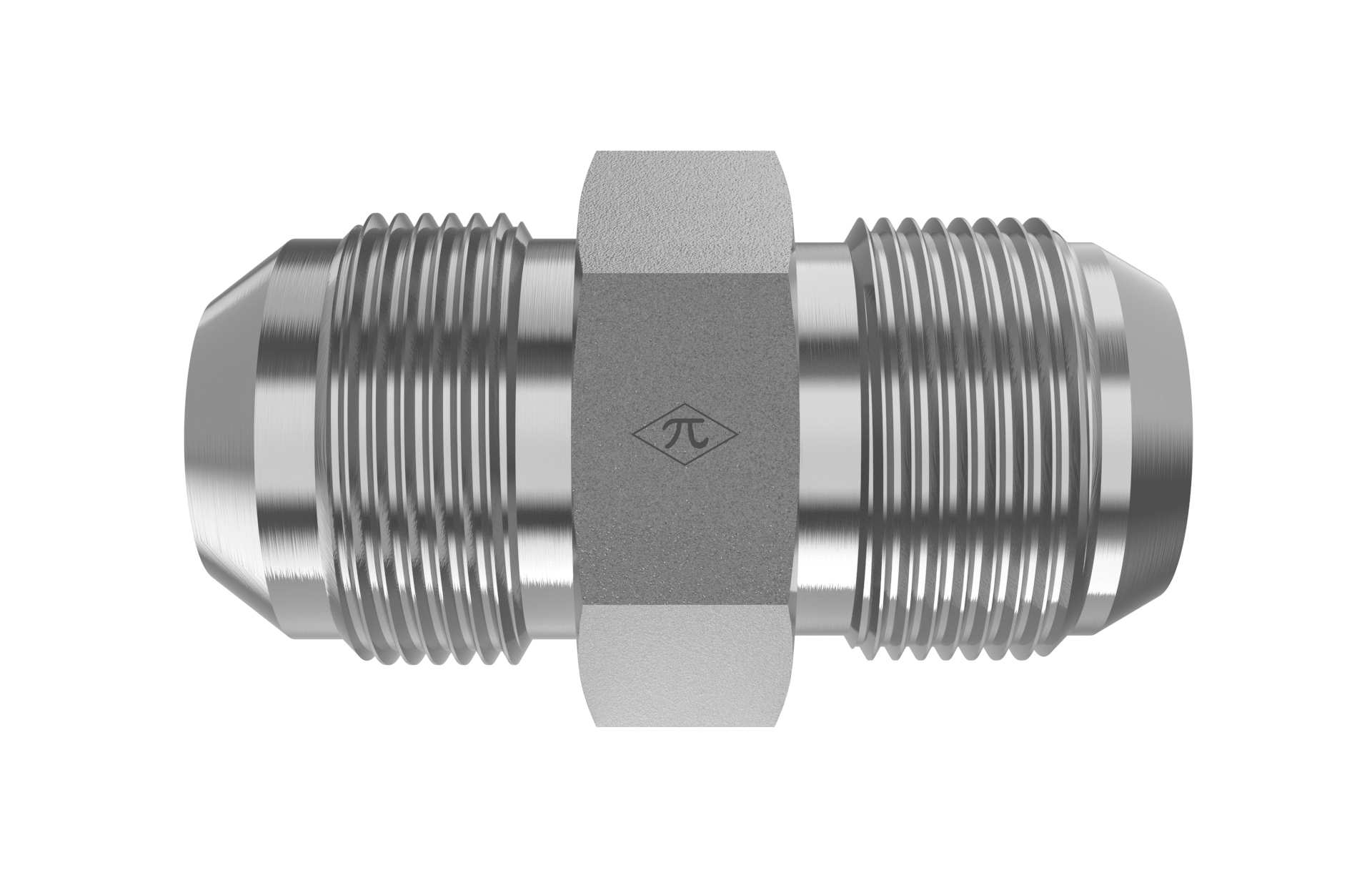

7008-04-04-SS

1/4" Male JIC x 1/4" Male JIS

7008-04-04-SS is a 1/4" Male JIC x 1/4" Male JIS in the 7008 Series. 7008 adapts a male JIC 37° flare tube end to a male JIS tube end for straight cross-standard line connections.

  • Stainless Steel
  • Passivated
  • Straight
$32.36
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale JIS
Size1/4"
StandardJIS B 0202
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeStraight
Weight0.08 lb
Cross References
Parker4 XHT4-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
