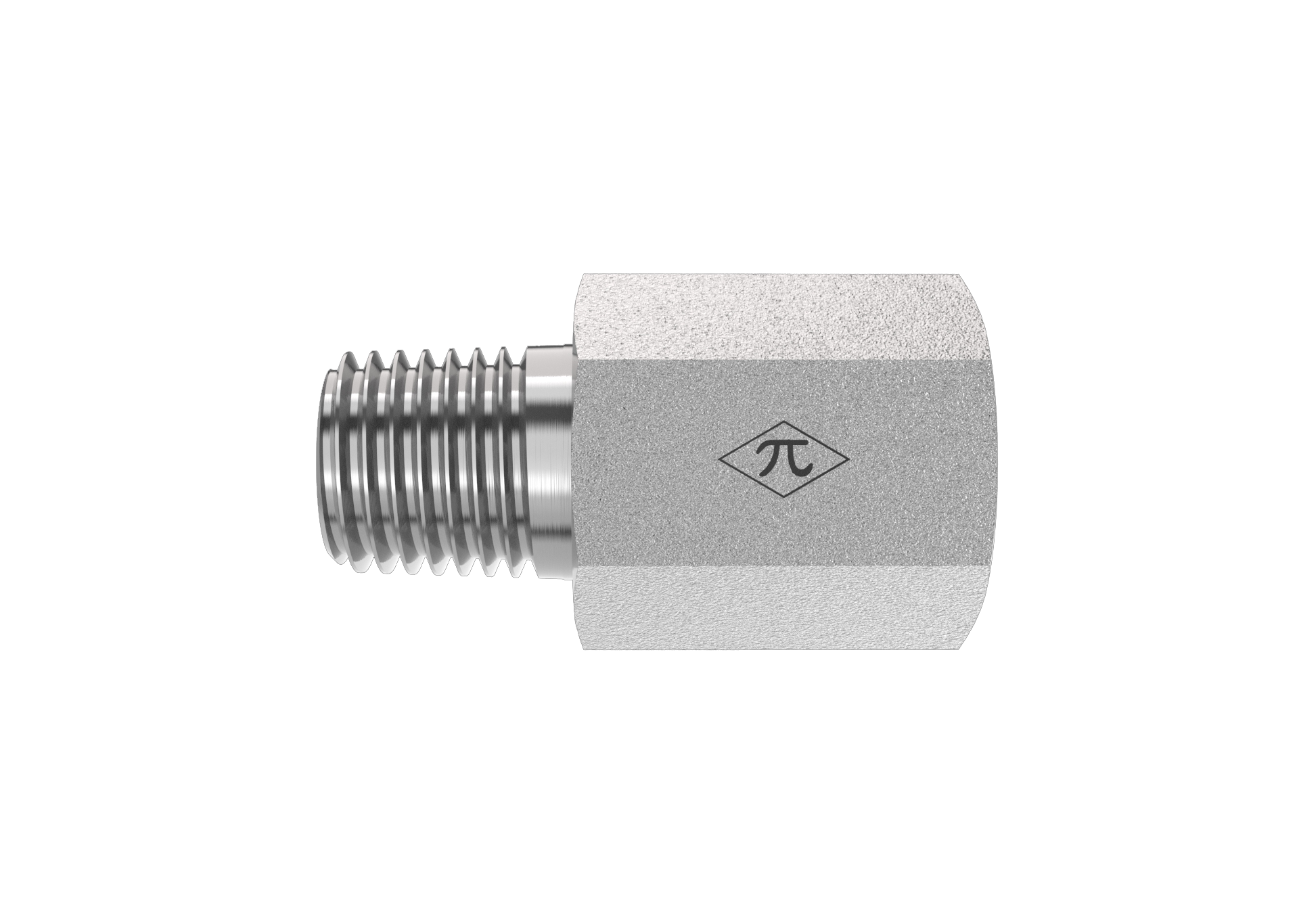

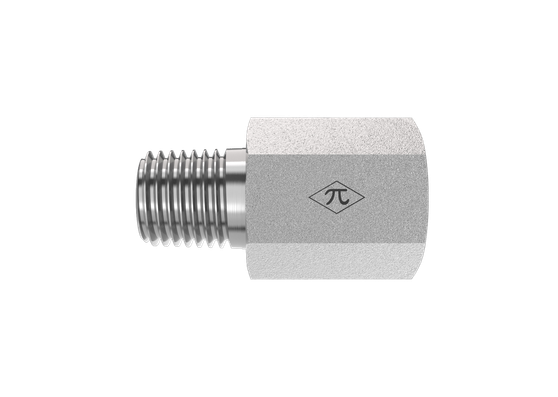

7040-08-06-B

1/2" Female NPTF x 3/8" Male BSPT 30°

7040-08-06-B is a 1/2" Female NPTF x 3/8" Male BSPT 30° in the 7040 Series. SAE J476 Rigid Pipe Male BSPT Adapter.

  • Brass
  • Natural Finish
  • Straight
$54.02
(0) Write a Review
SKU:
7040-08-06-B

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeMale BSPT 30°
Pipe Size3/8"
StandardISO 7-1
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialBrass
Weight0.24 lb
PlatingNatural Finish
ShapeStraight
Cross References
Parker3/8X3/8F3HGB

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
