7045-02-12

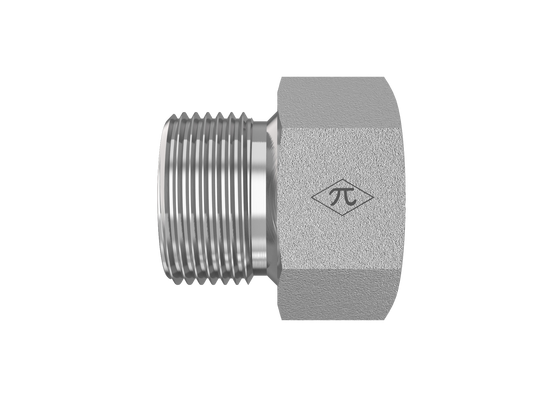

1/8" Female NPTF × M12X1.5 Male Metric 60° Line/Port · Straight Adapter

The HGW 7045-02-12 is a straight adapter joining 1/8" female NPTF to M12X1.5 male metric 60° line/port. Made from trivalent-zinc-plated steel, it uses SAE J476 and ISO 9974 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Straight
$11.29
(0) Write a Review
SKU:
7045-02-12

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeMale Metric 60° Line/Port
Port SizeM12X1.5
StandardISO 9974
Thread Type1/8-27 NPTF
SizeM12X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
