7045-12-30X1.5

3/4" Female NPTF × M30x1.5 Male Metric 60° Line/Port · Straight Adapter

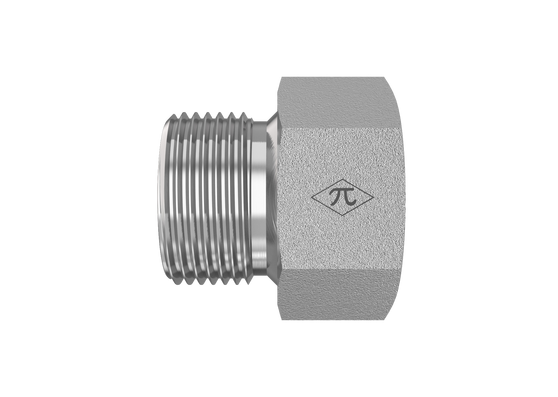

The HGW 7045-12-30X1.5 is a straight adapter joining 3/4" female NPTF to M30x1.5 male metric 60° line/port. Made from trivalent-zinc-plated steel, it uses SAE J476 and ISO 9974 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Straight
$56.20
(0) Write a Review
SKU:
7045-12-30X1.5

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeMale Metric 60° Line/Port
StandardISO 9974
Port SizeM30x1.5
Thread Type3/4-14 NPTF
SizeM30x1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
