HGW HYDRAULICS

7100-04-04-SS

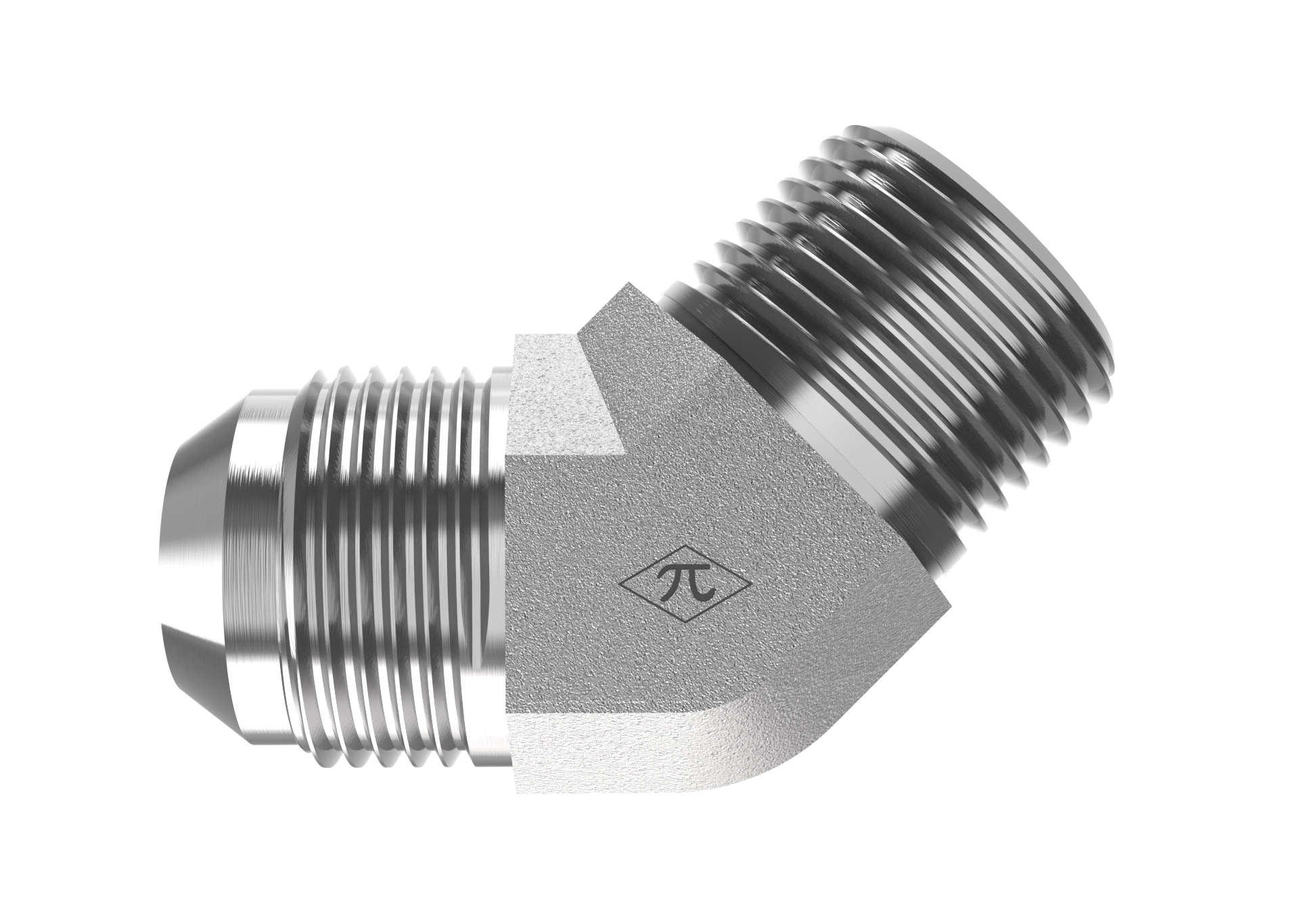

1/4" Male JIC 37° Flare × 1/4" Male BSPT · Male Elbow

The HGW 7100-04-04-SS is a male elbow joining 1/4" male JIC 37° flare to 1/4" male BSPT. Made from stainless steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Passivated
  • Male Elbow
$91.91
(0) Write a Review
SKU:
7100-04-04-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1/4"
StandardSAE J514 · Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale BSPT
Pipe Size1/4"
StandardISO 7/1 (BSPT)
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Elbow
Weight0.08 lb
Cross References
Aeroquip259-GG210-NP04-04
Parker4-4V3MXSS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
