HGW HYDRAULICS

7100-06-06-FG

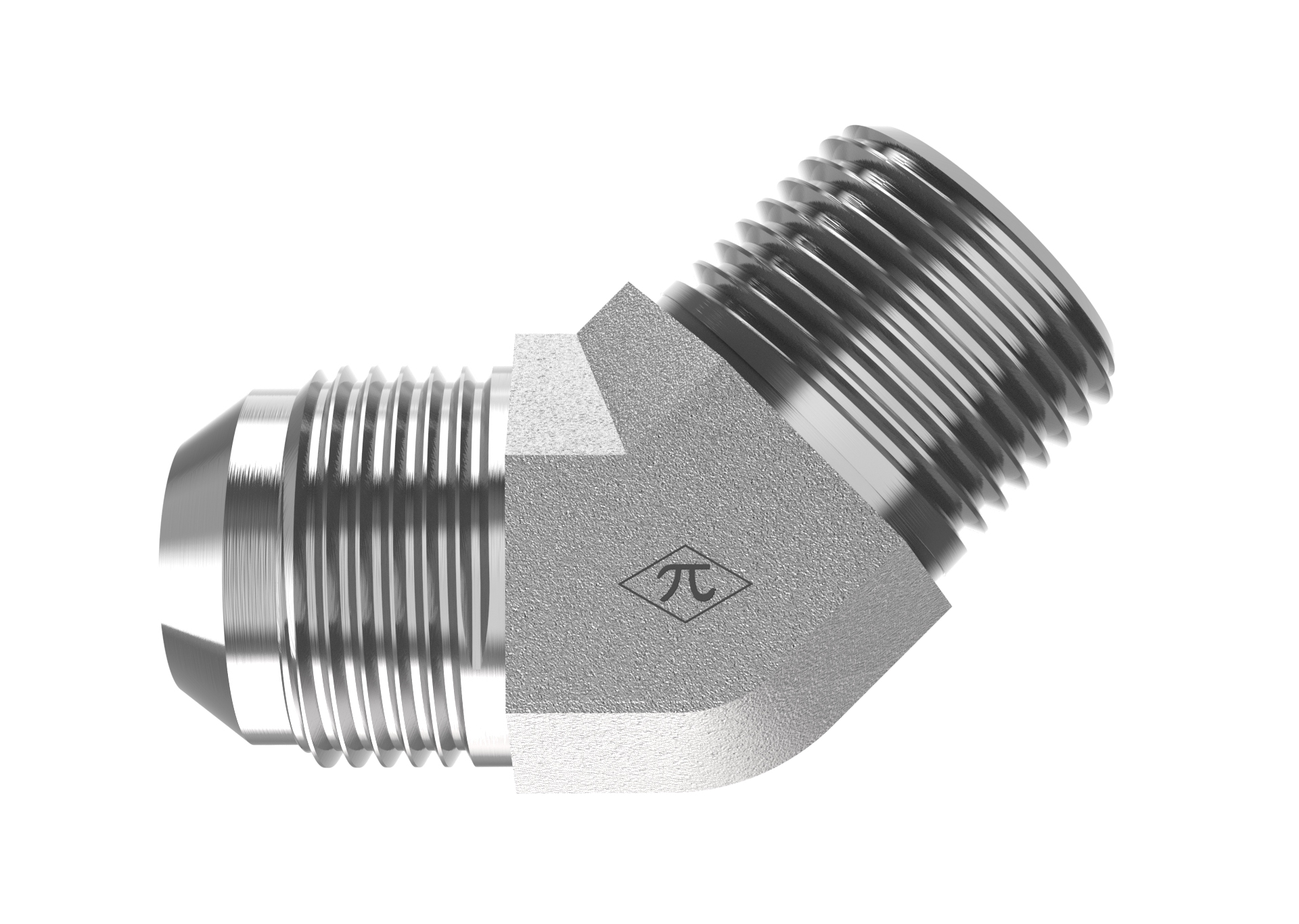

3/8" Male JIC 37° Flare × 3/8" Male BSPT · Male Elbow

The HGW 7100-06-06-FG is a male elbow joining 3/8" male JIC 37° flare to 3/8" male BSPT. Made from trivalent-zinc-plated steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$30.48
(0) Write a Review
SKU:
7100-06-06-FG

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD3/8"
StandardSAE J514 · Class 2A Thread
Thread Type9/16-18 UNF
Connection B
TypeMale BSPT
Pipe Size3/8"
StandardISO 7/1 (BSPT)
Thread Type9/16-18 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Elbow
Weight0.12 lb
Cross References
AeroquipGG210-NP06-06
Parker6-6V3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
