7100-08-06-FG

1/2" Male JIC x 3/8" Male BSPT

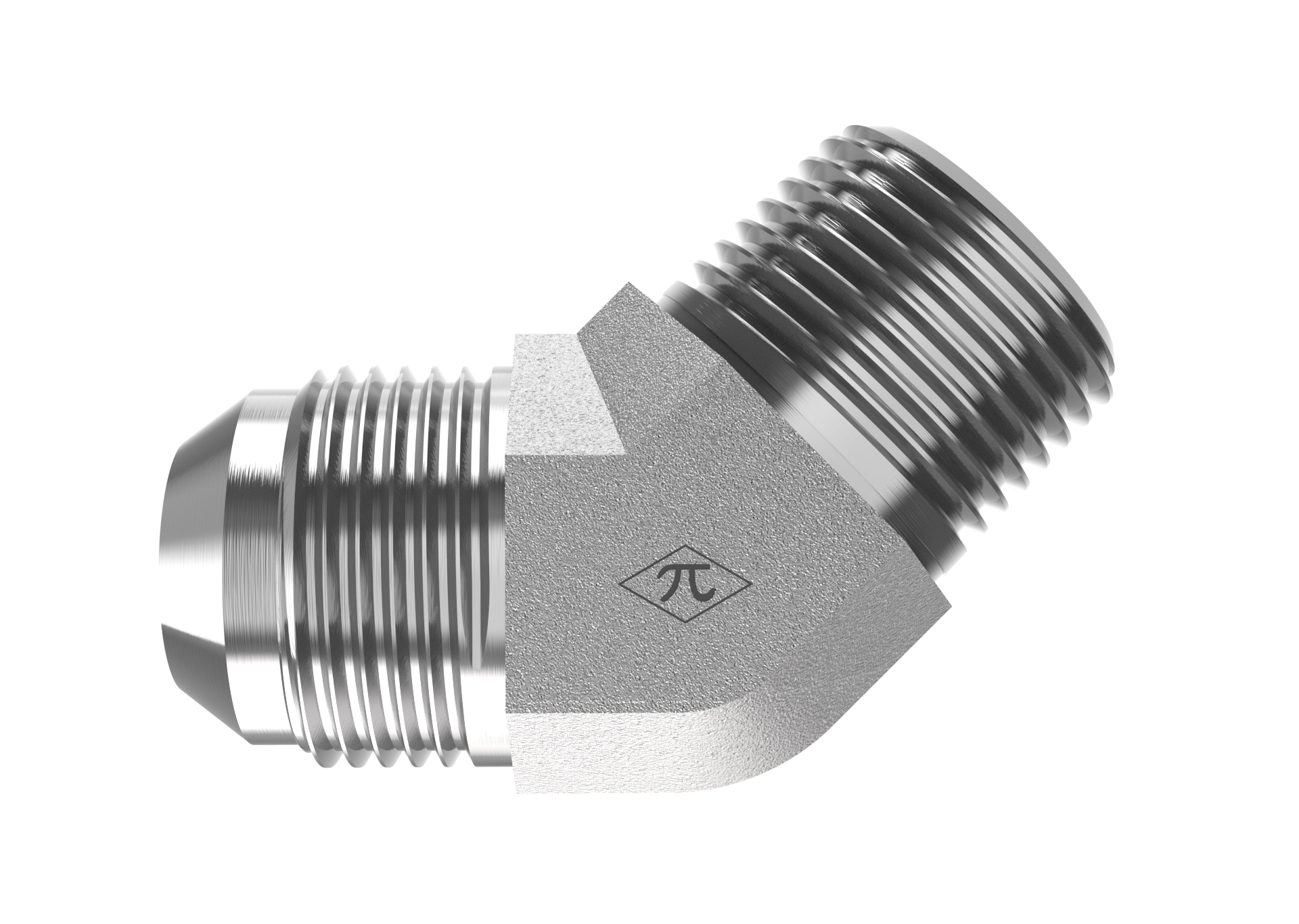

7100-08-06-FG is a 1/2" Male JIC x 3/8" Male BSPT in the 7100-FG Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe at a 45° angle.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$32.96
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeMale BSPT
Pipe Size3/8"
StandardISO 7/1 (BSPT)
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Elbow
Weight0.15 lb
Cross References
AeroquipGG210-NP08-06
Parker8V3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
