7100-08-08-FG

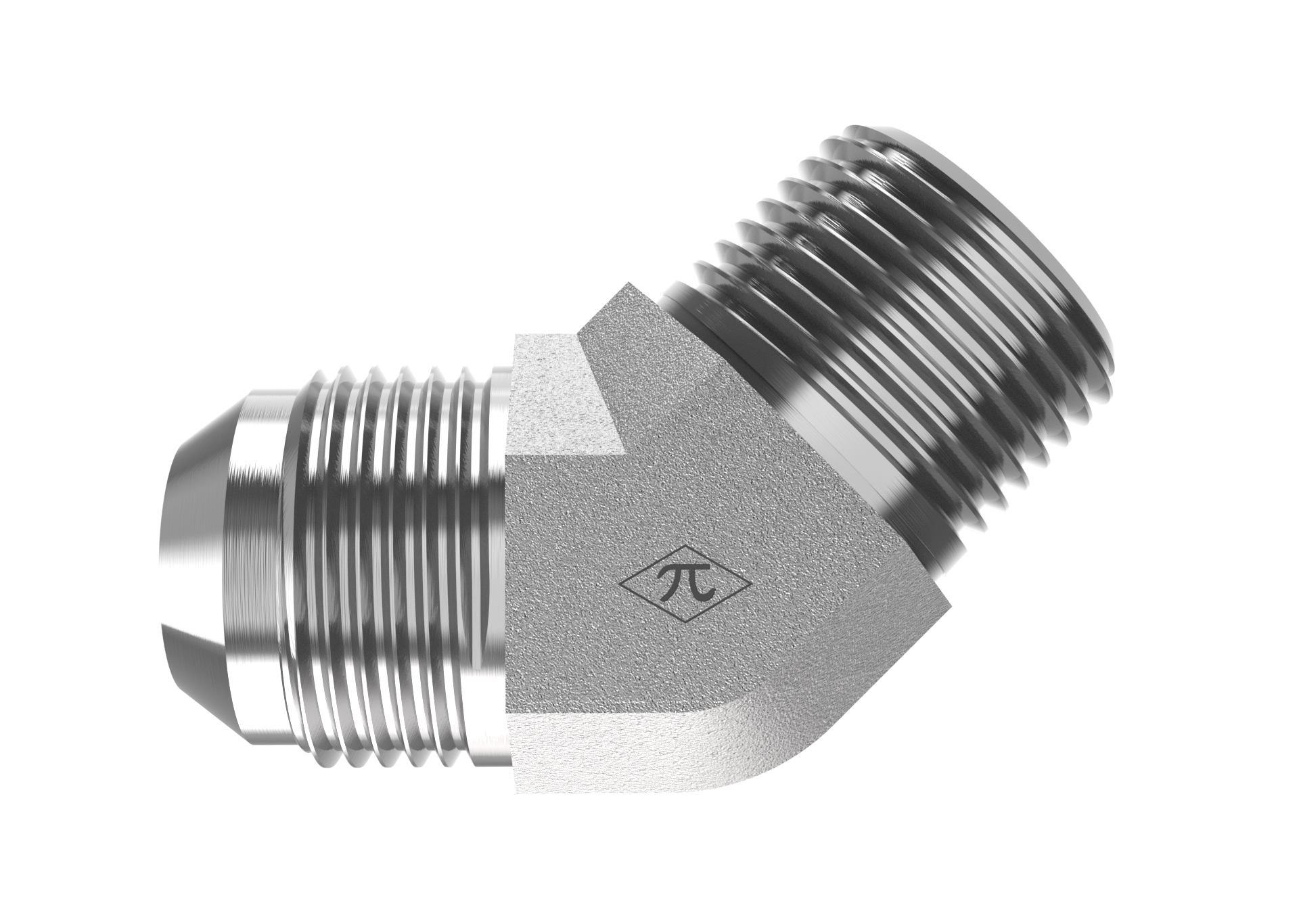

1/2" Male JIC 37° Flare × 1/2" Male BSPT · Male Elbow

The HGW 7100-08-08-FG is a male elbow joining 1/2" male JIC 37° flare to 1/2" male BSPT. Made from trivalent-zinc-plated steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$34.78
(0) Write a Review
SKU:
7100-08-08-FG

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1/2"
StandardSAE J514 · Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeMale BSPT
Pipe Size1/2"
StandardISO 7/1 (BSPT)
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Elbow
Weight0.21 lb
Cross References
AeroquipGG210-NP08-08
Parker8-8V3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
