HGW HYDRAULICS

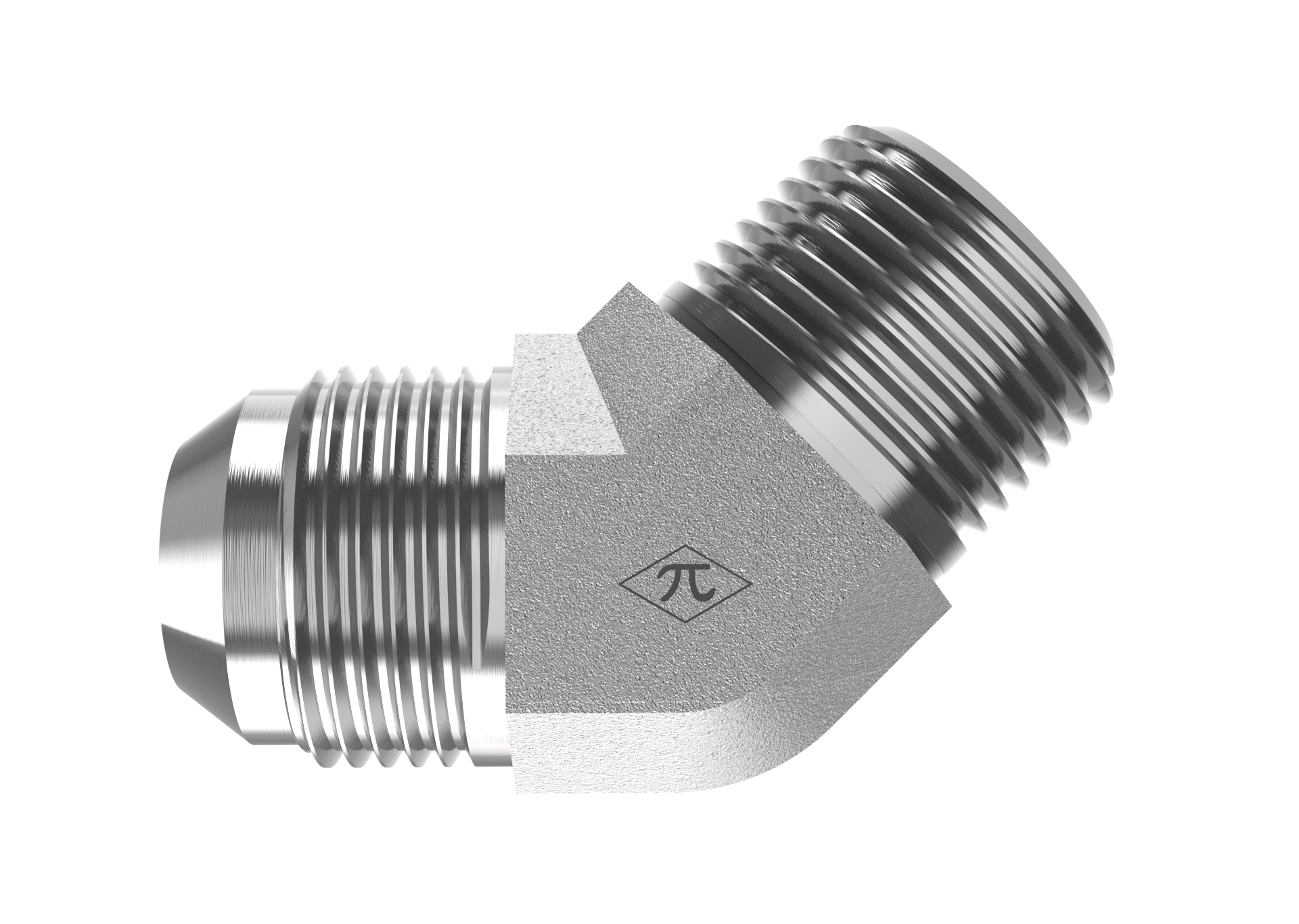

7100-16-16-FG

1" Male JIC x 1" Male BSPT

7100-16-16-FG is a 1" Male JIC x 1" Male BSPT in the 7100-FG Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe at a 45° angle.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$125.18
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale BSPT
Pipe Size1"
StandardISO 7/1 (BSPT)
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Elbow
Weight0.58 lb
Cross References
AeroquipGG210-NP16-16
Parker16V3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
