HGW HYDRAULICS

7100-20-20-FG

1-1/4" Male JIC x 1-1/4" Male BSPT

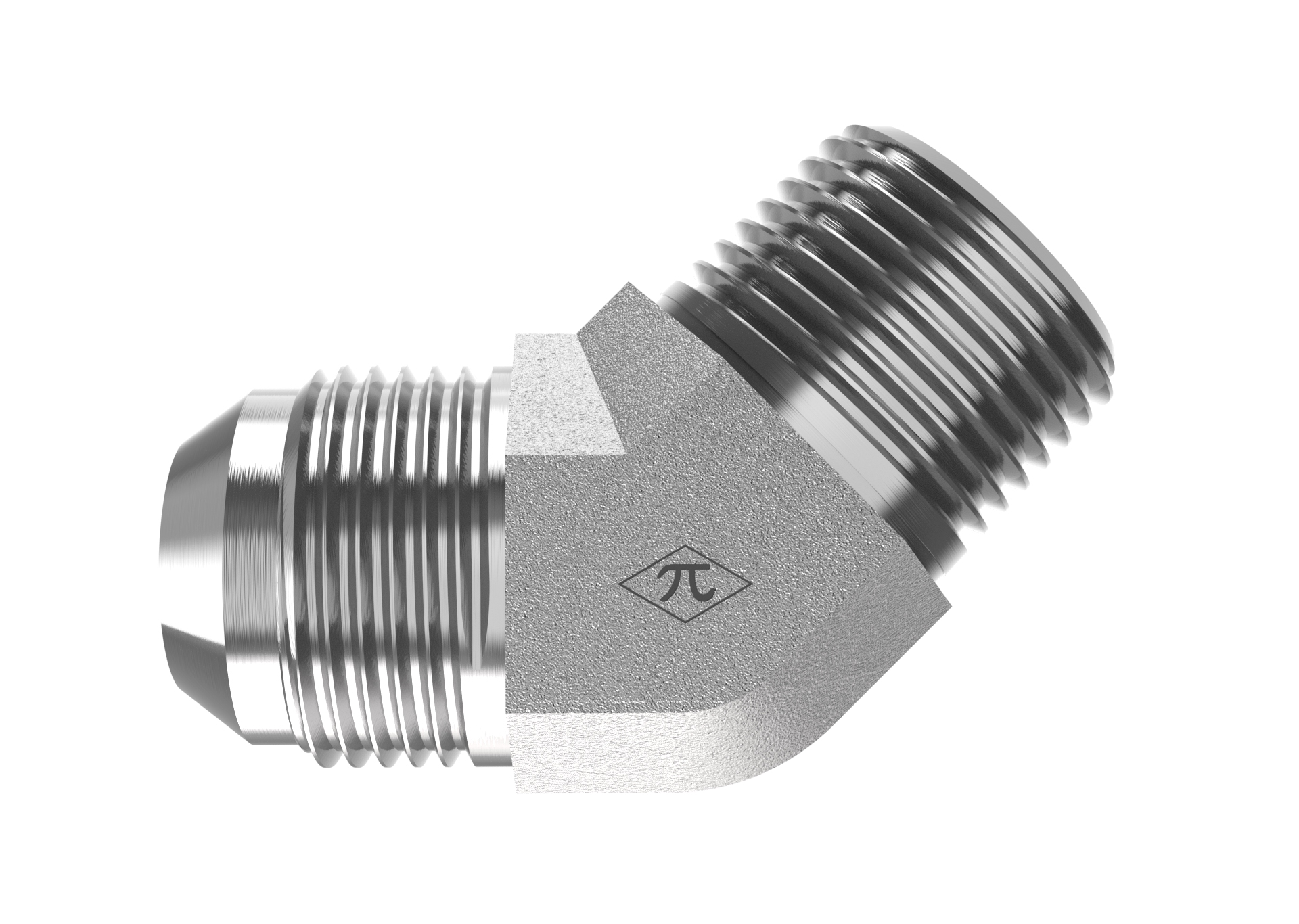

7100-20-20-FG is a 1-1/4" Male JIC x 1-1/4" Male BSPT in the 7100-FG Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe at a 45° angle.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$309.87
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/8-12 UN
Connection B
TypeMale BSPT
Pipe Size1-1/4"
StandardISO 7/1 (BSPT)
Thread Type1-5/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Elbow
Weight0.82 lb
Cross References
AeroquipGG210-NP20-20
Parker20V3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
