HGW HYDRAULICS

7200-04-02-SS

1/4" Male JIC x 1/8" Male BSPT

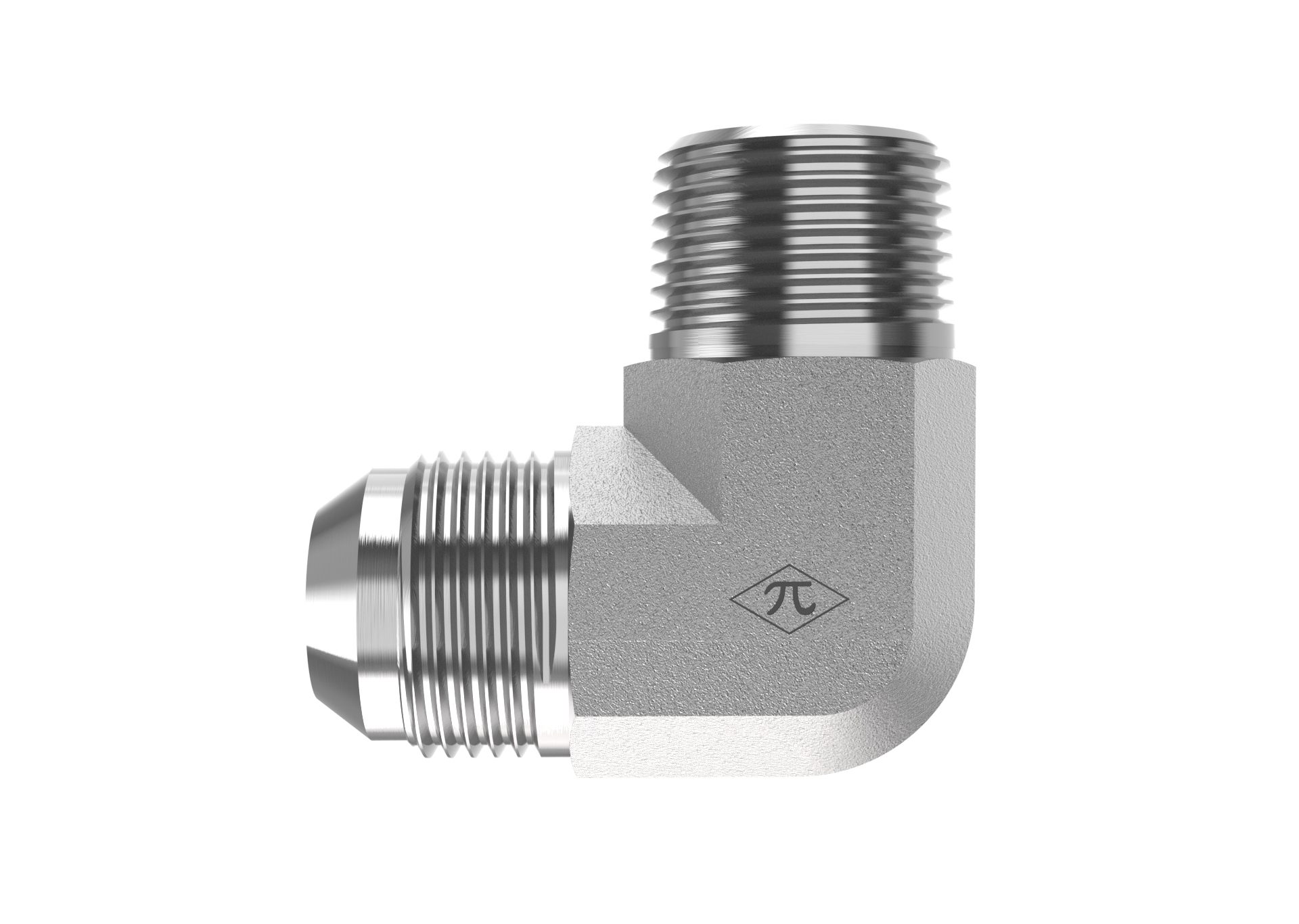

7200-04-02-SS is a 1/4" Male JIC x 1/8" Male BSPT in the 7200-FG Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe at a 90° angle.

  • Stainless Steel
  • Passivated
  • Male Elbow
$145.54
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale BSPT
Pipe Size1/8"
StandardISO 7/1 (BSPT)
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Elbow
Weight0.19 lb
Cross References
Aeroquip259-GG310-NP04-02
Parker4C3MXSS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
