HGW HYDRAULICS

7200-04-04-SS

1/4" Male JIC 37° Flare × 1/4" Male BSPT · Male Elbow

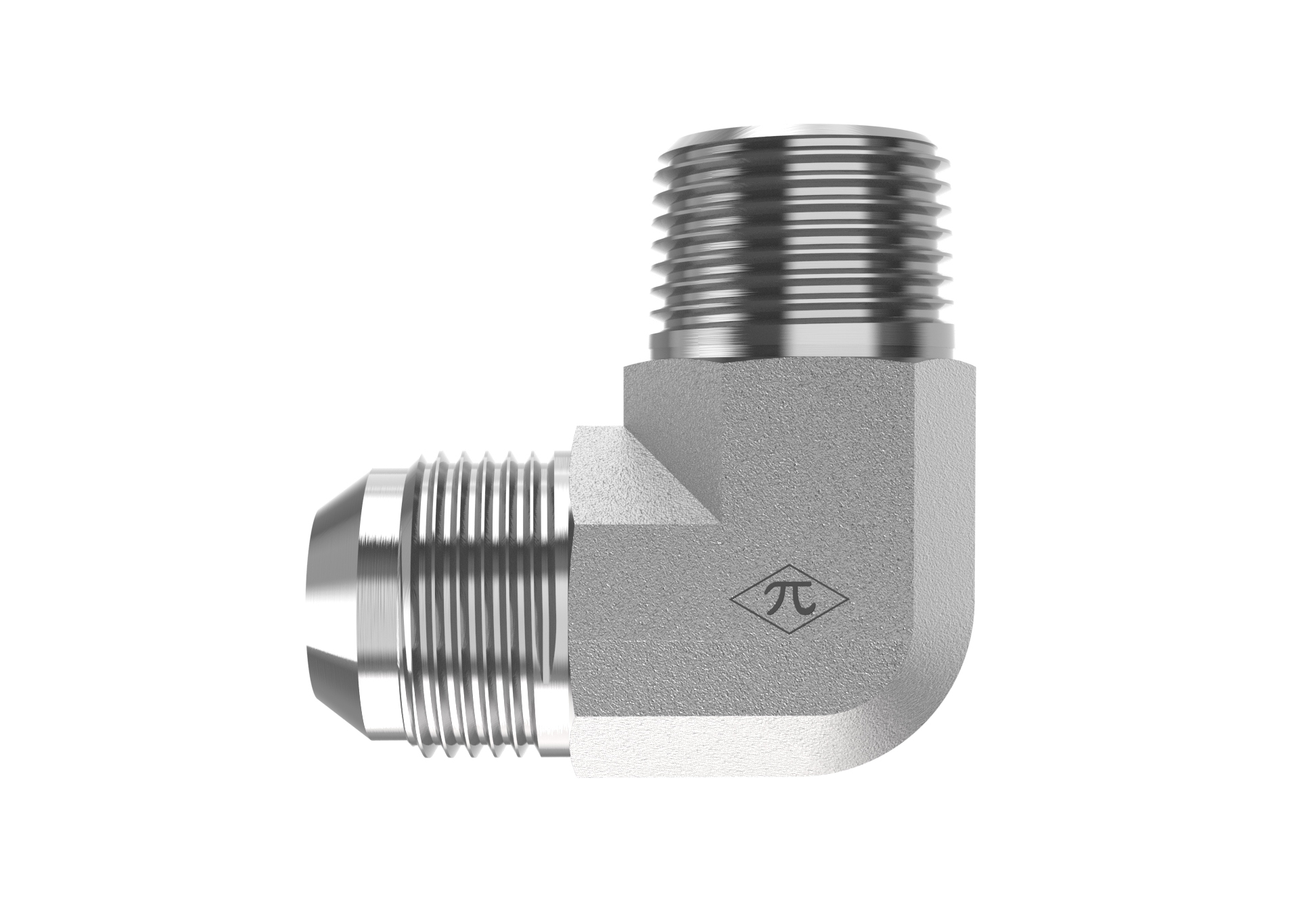

The HGW 7200-04-04-SS is a male elbow joining 1/4" male JIC 37° flare to 1/4" male BSPT. Made from stainless steel, it uses SAE J514 and ISO 7/1 (BSPT) interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Passivated
  • Male Elbow
$63.40
(0) Write a Review
SKU:
7200-04-04-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1/4"
StandardSAE J514 · Class 2A Thread
Thread Type7/16-20 UNF
Connection B
TypeMale BSPT
Pipe Size1/4"
StandardISO 7/1 (BSPT)
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Elbow
Weight0.12 lb
Cross References
Aeroquip259-GG310-NP04-04
Parker4-4C3MXSS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
