HGW HYDRAULICS

7200-05-04-FG

5/16" Male JIC x 1/4" Male BSPT

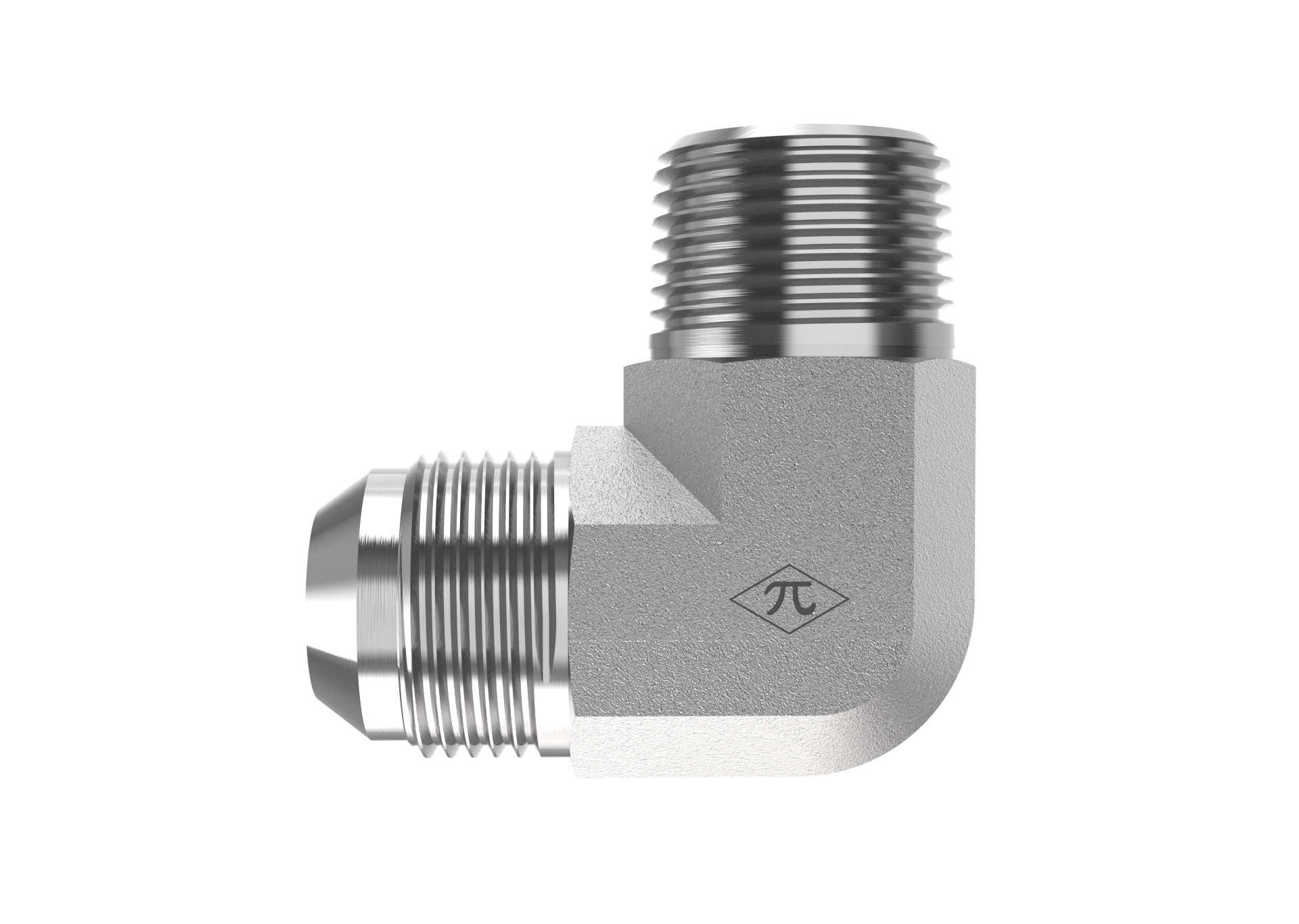

7200-05-04-FG is a 5/16" Male JIC x 1/4" Male BSPT in the 7200-FG Series. For connecting a 37° flared tube or line to a male BSPT (tapered) pipe at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$30.72
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale BSPT
Pipe Size1/4"
StandardISO 7/1 (BSPT)
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Elbow
Weight0.12 lb
Cross References
AeroquipGG310-NP05-04
Parker5-4C3MXS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
