HGW HYDRAULICS

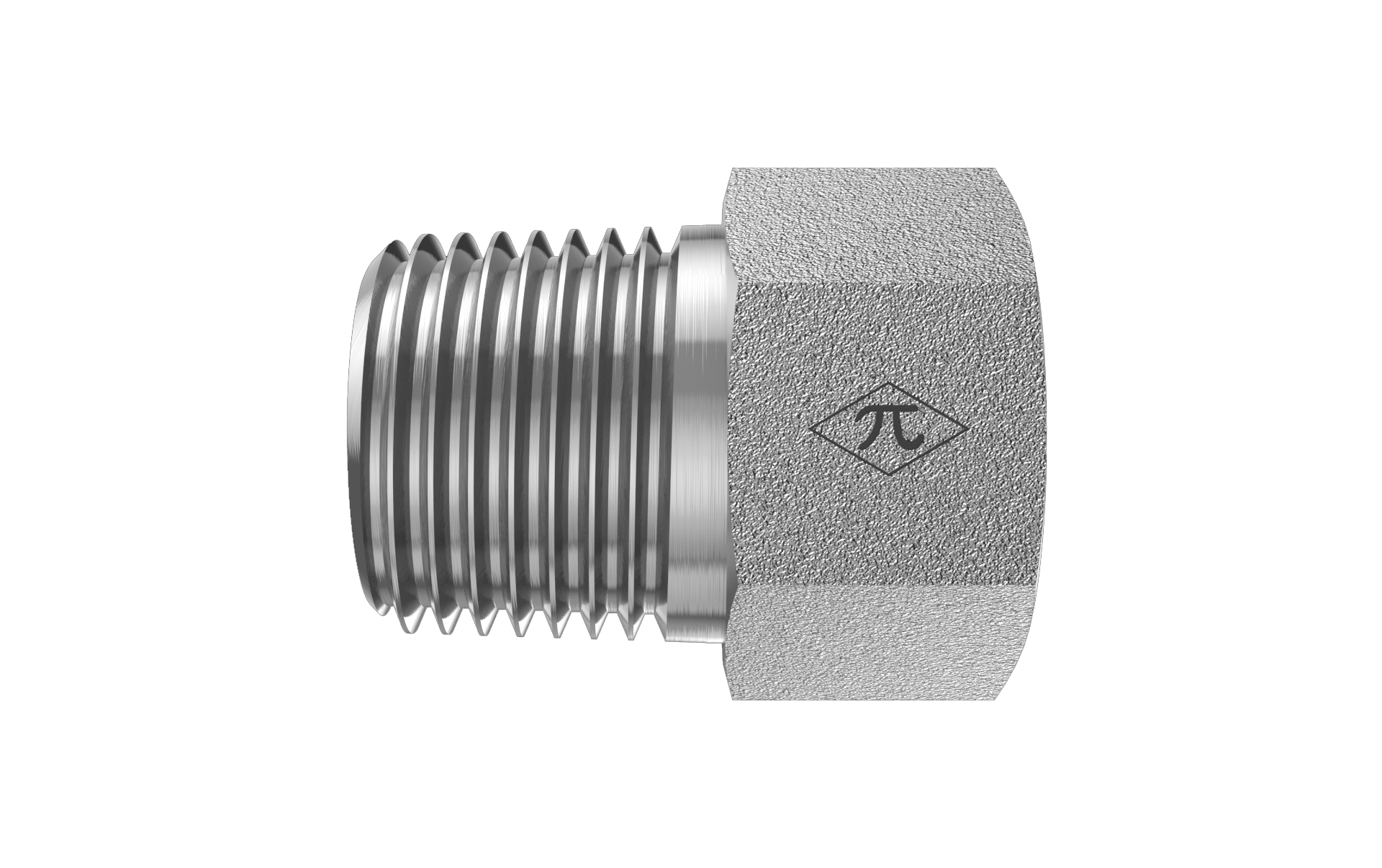

9001-24-04

1-1/2" Male BSPT 30° x 1/4" Female BSPT

9001-24-04 is a 1-1/2" Male BSPT 30° x 1/4" Female BSPT in the 9001 Series. For connecting a smaller male BSPT pipe end to a larger female BSPT port.

  • Steel
  • Trivalent Zinc
  • Straight
$159.59
(0) Write a Review

Product Details

Connection A
TypeMale BSPT 30°
Pipe Size1-1/2"
StandardISO 7-1
Thread TypeR - 1-1/2-11
Connection B
TypeFemale BSPT
Pipe Size1/4"
StandardISO 7-1
Thread TypeR - 1-1/2-11
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight
Weight0.50 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
