Protect GSE Hose by Mapping Motion, Abrasion, Heat, and Operator Exposure

Ground support equipment operates close to aircraft, people, baggage, fuel and moving structures. A hose-protection plan should begin with the exact hazard at each location instead of adding the same sleeve to every line.

Deicers, cargo loaders, tugs, belt loaders, jet bridges, power units and snow-removal machines create different motion and exposure profiles.

Observe the entire service cycle

Inspect hose during stowed, travel and operating positions under the equipment procedure. Mark where it bends, twists, rubs, stretches or approaches a pinch point. Check the transition behind each coupling, because reinforcement fatigue often begins where a moving line becomes rigid.

Record fluid, pressure, temperature, minimum bend radius and credible transients for the exact hose. Protection cannot compensate for an assembly that is too short, incorrectly routed or unsuitable for the service.

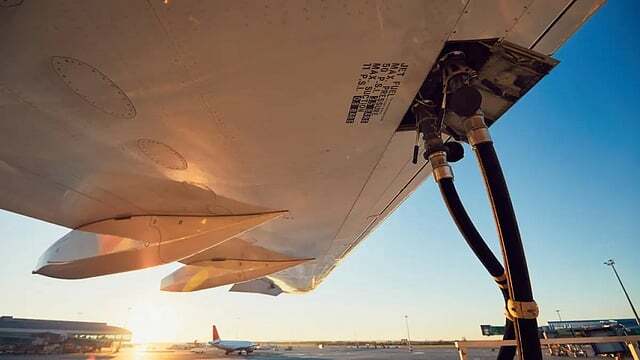

Treat refueling hose as a separate system

Aircraft fueling hose is not automatically a hydraulic hose. It has its own construction, electrical, chemical, pressure, inspection and regulatory requirements. High-visibility or abrasion wraps may improve identification and surface protection only when approved for that hose system.

A wrap must not hide damage, trap contamination or interfere with required bonding, inspection or coupling operation. Product color alone does not certify chemical, UV or fuel compatibility.

Design repeated motion into jet bridges and loaders

Jet bridges and cargo or belt loaders change elevation and reach repeatedly. Route hose so articulation occurs over an allowed length rather than at one sharp bend. Guides and clamps should control movement without pinching the line or carrying load through the fitting.

Inspect nearby cables, structure and covers for new contact marks. A replacement hose with a different outside diameter or stiffness can change the motion path even when its end connections fit.

Cargo platforms and belt equipment can also expose hose to scissor mechanisms and rolling structures. Keep lines outside closing envelopes and verify supports after collision, caster or height-adjustment service. Do not rely on a guard that can itself become a pinch edge.

Guard exposed snow and ramp equipment by hazard

Runway plows, brooms, tractors and tugs can expose lines to ice, aggregate, debris, wash chemicals and impact. Spiral or spring guards may address abrasion or localized impact. Bundling can organize several lines but must allow relative movement and inspection.

Crush protection requires routing and structure; a sleeve alone cannot make a hose safe beneath a moving component. Replace a line when cuts, kinks or exposed reinforcement exceed its inspection criteria rather than covering the evidence.

Deicing fluid, road salt and cleaning chemicals can collect beneath bundled guards. Confirm compatibility with hose cover, plating and clamp material, and provide drainage or cleaning access. Check fitting corrosion where a sleeve terminates because trapped moisture often appears at edges.

Choose protection by its function

Abrasion guards shield the cover at controlled contact points. Bend restrictors support the transition near an end but do not authorize bending below the hose minimum radius. Line-of-sight sleeves can help contain spray or direct leakage away from personnel when qualified for the assembly and installed correctly.

Heat or fire sleeves address defined thermal exposure. Check radiant, contact and internal fluid temperatures. Adhesive-lined shrink products and molded protectors must be compatible with the cover and must not transfer an abrupt load to the coupling.

Protection products have their own installation limits. Spiral guard pitch, sleeve diameter, closure method and overlap affect movement and inspection. Cable ties or clamps should not cut the cover or prevent the hose from changing length under pressure.

Where a hose is in an operator line of sight, select a qualified containment sleeve and route discharge away from people. Such a sleeve can reduce exposure but does not make a damaged hose safe to operate. Fluid injection remains an emergency requiring appropriate medical response.

Define inspection triggers by duty

High-cycle jet-bridge hoses, dragged fueling hoses and seasonally used plow lines should not share one interval by habit. Use equipment instructions, service hours, cycles, environmental exposure and observed wear rate. Increase inspection after a routing change, impact or unusually severe weather.

Measure developing abrasion or record standardized photographs instead of relying on memory. If the cover is removed or a coupling is disturbed, inspect the newly exposed area before installing another guard.

Keep protection inspectable and documented

Tag the hose and record assembly date, part identity, protection location and reason. During inspection, move or open removable guards as allowed so the covered area can be seen. Look for sleeve migration, trapped grit, hardening, wetness and coupling movement.

Ground operations depend on serviceable equipment, but hose protection should not be justified with dramatic promises about flight safety. Its measurable purpose is to control a mapped wear, heat or exposure mechanism and make developing damage visible before the line loses integrity.

When replacement is required, capture hose length, end orientation, clocking, guards, support locations and machine position at removal. A U.S. local spare can speed return to service only if those configuration details match; an approximate assembly can create a new rub point on its first cycle.
