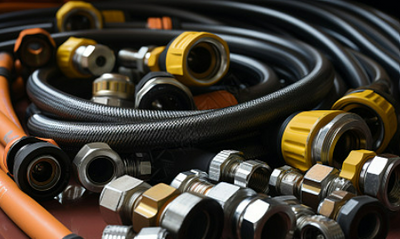

Spiral vs Braided Hydraulic Hoses: Key Differences

Spiral and braided hydraulic hoses both move hydraulic fluid between components, but their reinforcement is built differently. Construction, flexibility, durability, and typical uses are the key differences, so buyers should not treat all hydraulic hose as the same.

The hose choice should be made before the fitting choice is finalized, because the hose type affects pressure rating, bend behavior, crimp requirements, routing, and the end connections that can be used safely.

Construction difference

Braided hydraulic hose uses one or more braided reinforcement layers. The reinforcement wraps around the tube in a crossing pattern. This construction is common in many general hydraulic applications because it can balance strength, flexibility, and availability.

Spiral hydraulic hose uses reinforcement wires wound in spiral layers. The layers are arranged to resist high pressure and impulse loads. Spiral construction is often selected when the system sees stronger pressure spikes, severe duty cycles, or heavy equipment loads.

Flexibility and routing

Braided hose is usually more flexible than a comparable spiral hose. That can help in tight routing, moving assemblies, service repairs, and places where the hose has to fit around guards, cylinders, or frames.

Spiral hose is generally stiffer. That stiffness can be useful for high-pressure durability, but it also means routing has to be planned carefully. A stiff hose forced into too tight a bend can load the fitting end, reduce service life, or rub against nearby parts.

Pressure and impulse resistance

Spiral hose often has the advantage where pressure and repeated impulse are major concerns. A hydraulic system does not only see steady working pressure. It can see spikes when valves shift, loads change, cylinders stop, or equipment hits shock loads.

Braided hose can still be correct for many systems, but the working pressure, burst rating, impulse rating, fluid, temperature, and movement must fit the machine. The label on the old hose, if still readable, is an important source of replacement information.

Uses in equipment

Braided hose often appears in general hydraulic circuits, repair work, compact equipment, and applications where flexibility is valuable. Spiral hose is common in heavier construction, mining, mobile equipment, and other demanding service where high pressure and pressure cycling are expected.

The buyer should not choose only by availability. If the original machine used spiral hose because of impulse load, replacing it with a braided hose of the wrong rating can create a safety and downtime problem.

Cover, temperature, and abrasion still matter

Reinforcement is only one part of the hose decision. The cover material, tube material, fluid compatibility, ambient temperature, fluid temperature, and abrasion exposure also affect service life. A hose can have the right reinforcement and still fail early if it is routed across a sharp edge or installed near heat.

For mobile equipment, check whether the hose bends during operation, rubs against a frame, twists near the fitting, or hangs where debris can strike it. Spiral hose stiffness can make those routing issues more obvious, but braided hose can fail from the same causes.

Keep the old assembly until the new one is matched

The old hose assembly is useful evidence. Keep it long enough to record layline information, end fitting style, clocking between angled ends, protective sleeve, bend restrictors, and any wear marks. Those marks often explain why the hose failed and whether the replacement should change routing support.

End fittings and replacement notes

The hose reinforcement affects the crimp style and fitting selection. Reusable fittings, permanent crimp fittings, bite style, skive or no-skive preparation, and bend restrictors all have to match the hose design.

Before ordering, record hose inside diameter, overall assembly length, working pressure, hose standard, reinforcement type, fitting ends, orientation between elbows, bend radius, abrasion exposure, and movement. The hose and fittings should be treated as one assembly, not separate guesses.
