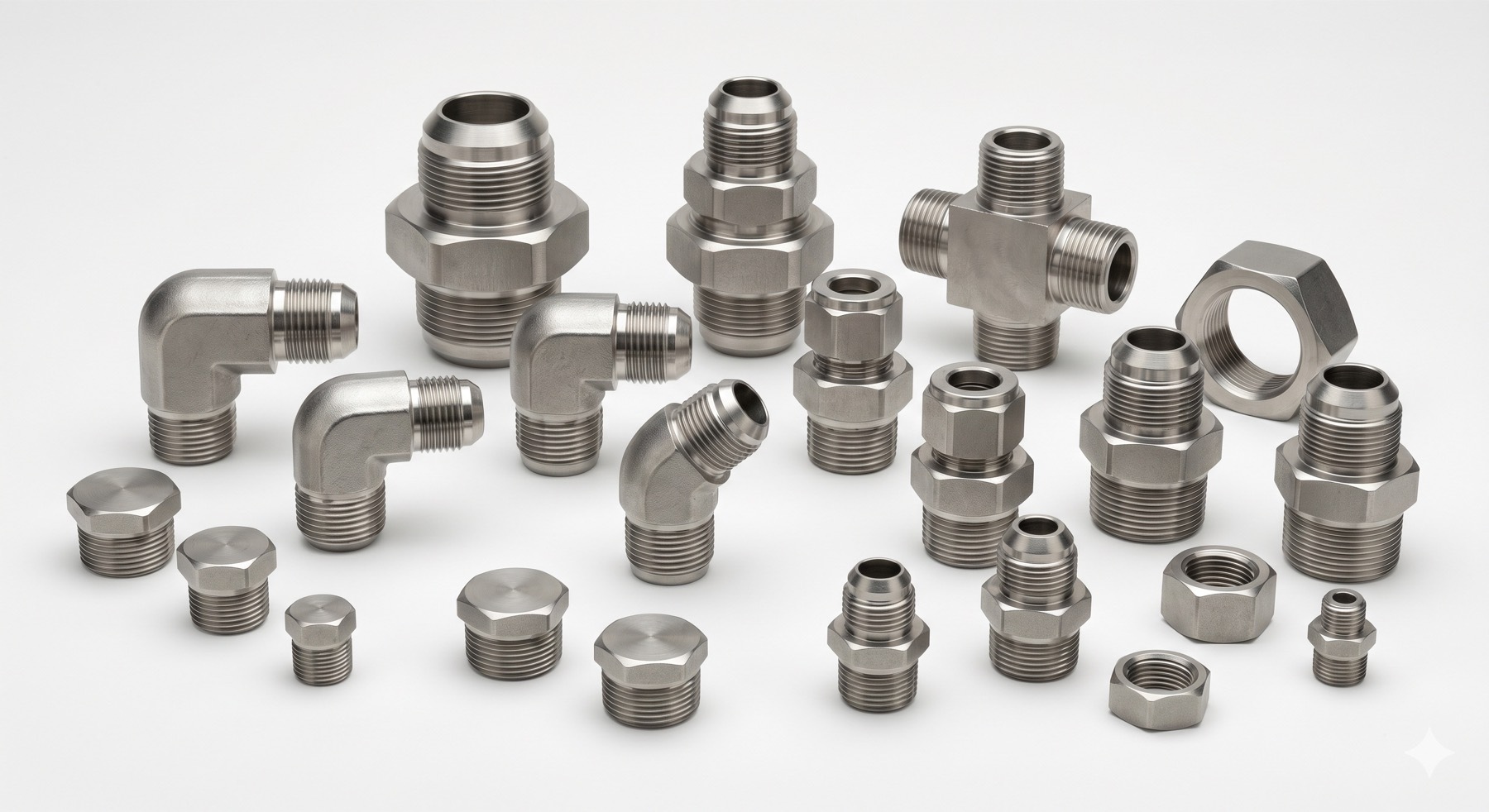

Choose Tube Fittings by Tube Preparation, Seal, and Service Duty

“Instrumentation” and “industrial” are useful market labels, but they do not tell an assembler how a tube end seals. A better selection starts with the tube specification and asks what preparation, grip, sealing surface, and inspection the connection requires.

The fitting, tube, ferrules or sleeve, nut, and installation procedure form one system. Mixing visually similar parts or applying one make-up rule to every design can defeat an otherwise correct material choice.

Instrumentation compression fittings form the connection on plain tube

Single-ferrule designs use one ferrule to perform sealing and gripping functions according to the manufacturer’s geometry. Two-ferrule designs commonly divide those functions between a front and back ferrule. Both can serve demanding process, analytical, gas, and measurement systems when the complete assembly is qualified.

Ferrule count is not a universal ranking of pressure, vibration, or leakage performance. Tube outside diameter, wall thickness, hardness, roundness, material, finish, and manufacturer test data are more meaningful.

Prepare the tube with a square cut and controlled deburring, insert it fully, and follow the specified turns, torque, presetting, or gauge method. Keep ferrules in the correct orientation and product family. For remakes, use the manufacturer’s inspection and tightening instruction rather than treating the connection as new.

A 37-degree flare creates a metal seat

SAE/JIC-style 37-degree tube fittings require the tube end to be flared to the matching angle. A sleeve supports the tube and a nut draws the flare against the male cone. Surface finish, concentricity, flare diameter, wall thickness, and absence of cracks control the seal.

Flared tube connections can be practical where disassembly is expected, but repeated remake is not unlimited. Inspect both seats and the tube flare for distortion, fretting, and scoring. Do not correct a poor flare with extra torque.

A 37-degree seat is not interchangeable with a 45-degree flare. Gauge the angle and thread family when the old connection is unknown.

Flareless bite-type fittings grip an unflared tube

Flareless industrial fittings use a sleeve or ferrule that bites or forms into the tube as the nut is tightened. The design avoids flaring but requires the correct tube hardness, wall, insertion depth, and assembly travel.

The tube must bottom as required while the sleeve is preset. Too little make-up can give inadequate grip; excessive or repeated tightening can move the bite and damage the tube. Some systems provide presetting tools or inspection gauges.

Vibration resistance depends on the complete installation. A fitting cannot compensate for unsupported tubing that flexes at the nut.

ORFS tube ends move the seal to a flat face

O-ring face seal tube assemblies use an O-ring in a male face against a flat mating surface. The tube end may be formed or connected to a braze-on sleeve according to its qualified system. The nut creates clamping while the O-ring retains fluid.

ORFS can be useful in mobile and industrial circuits subject to vibration or repeated cycling. Inspect the O-ring groove, face, sleeve attachment, and alignment. Select the elastomer for the actual fluid and temperature rather than treating all face seals as identical.

Material selection belongs to the full pressure-temperature envelope

Stainless steel, carbon steel, brass, and higher alloys each cover broad ranges of composition and condition. No material has one universal pressure or temperature rating. Fitting size, wall, tube, connection style, heat treatment, corrosion environment, and seal can control the limit.

Stainless may suit corrosive or clean-process exposure but can gall at threads. Plated carbon steel can be economical in mobile hydraulics when coating and environment are compatible. Brass may suit many lower-load or utility services but can be restricted by fluid, stress, temperature, or code.

Use component-specific data. Do not transfer extreme temperature or five-digit pressure claims from one product to an entire material family.

Match the fitting to installation and maintenance reality

Document fluid, pressure and temperature range, tube material and dimensions, external environment, vibration, motion, cleaning, inspection access, applicable code, and desired disassembly frequency. Consider whether the installer has the correct flaring, presetting, bending, and gauging tools.

A connection that performs well in a controlled factory assembly may be difficult to reproduce in a cramped field location. A preassembled tube, bulkhead, swivel, or different routing can reduce on-machine preparation without compromising the standard.

For replacement work, identify the installed series from markings, dimensions, ferrule arrangement, seat, and drawing. Do not combine a familiar nut with an unknown body.

Tube fitting selection becomes more reliable when it follows the tube end: plain tube compressed by ferrules, a prepared 37-degree flare, a controlled bite sleeve, or an O-ring face-seal end. That preparation and seal path reveal the correct tools, inspection, material limits, and maintenance method.
