HGW HYDRAULICS

C2402-04-04

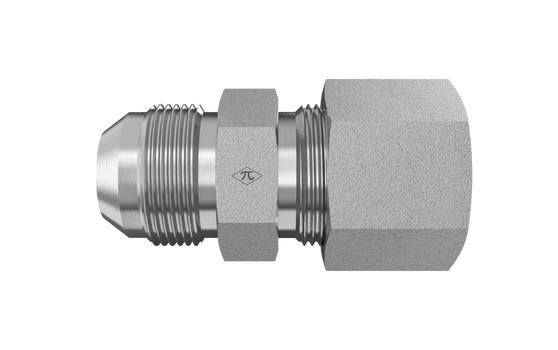

1/4" Flareless Bite Type x 1/4" Male JIC

C2402-04-04 is a 1/4" Flareless Bite Type x 1/4" Male JIC in the C2402 Series. For adapting a flareless bite-type tube to a 37° flared line.

  • Steel
  • Trivalent Zinc
  • Adapter
$9.04
(0) Write a Review

Product Details

Connection A
TypeFlareless Bite Type
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection B
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeAdapter
Weight0.07 lb
Cross References
AeroquipFF1316-0404S
Parker4 XHBU-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
