C2402-10-08-SS

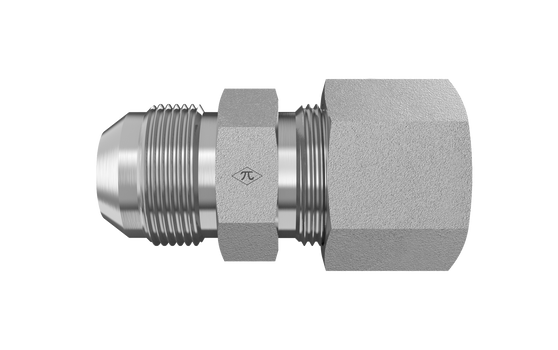

5/8" Flareless Bite Type x 1/2" Male JIC

C2402-10-08-SS is a 5/8" Flareless Bite Type x 1/2" Male JIC in the C2402 Series. For adapting a flareless bite-type tube to a 37° flared line.

  • Stainless Steel
  • Adapter
  • None
$191.52
(0) Write a Review

Product Details

Connection A
TypeFlareless Bite Type
Tube OD5/8"
StandardSAE J514
Thread Type7/8-14 UNF
Connection B
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeAdapter
Weight0.23 lb
PlatingNone
Cross References
Aeroquip259-FF1316-1008
Parker8-10 XHBU-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
