HGW HYDRAULICS

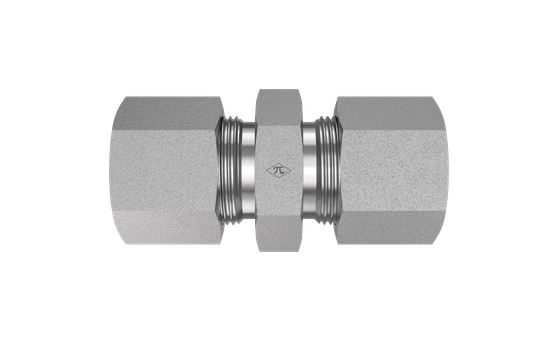

C2403-LH-04-04-SS

1/4" Flareless Bite Type x 1/4" Flareless Bite Type

C2403-LH-04-04-SS is a 1/4" Flareless Bite Type x 1/4" Flareless Bite Type in the C2403-LH Series. For joining two flareless bite-type tubes; the larger hex provides additional wrench grip during installation.

  • Stainless Steel
  • Union
  • None
$55.20
(0) Write a Review

Product Details

Connection A
TypeFlareless Bite Type
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection B
TypeFlareless Bite Type
Tube OD1/4"
StandardSAE J514
Thread Type7/16-20 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeUnion
Weight0.08 lb
PlatingNone
Cross References
Parker4 LHBU-SS
SAE Ref.SAE J514 4-4 08A0119S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
