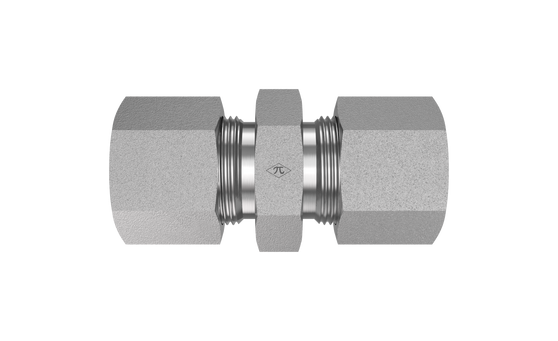

C2403-LH-10-08-SS

5/8" Flareless Bite Type x 1/2" Flareless Bite Type

C2403-LH-10-08-SS is a 5/8" Flareless Bite Type x 1/2" Flareless Bite Type in the C2403-LH Series. For joining two flareless bite-type tubes; the larger hex provides additional wrench grip during installation.

  • Stainless Steel
  • Union
  • None
$444.94
(0) Write a Review

Product Details

Connection A
TypeFlareless Bite Type
Tube OD5/8"
StandardSAE J514
Thread Type7/8-14 UNF
Connection B
TypeFlareless Bite Type
Tube OD1/2"
StandardSAE J514
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeUnion
Weight0.05 lb
PlatingNone
Cross References
Parker10-8 LHBU-SS
SAE Ref.SAE J514 10-8 08A0119S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
