HGW HYDRAULICS

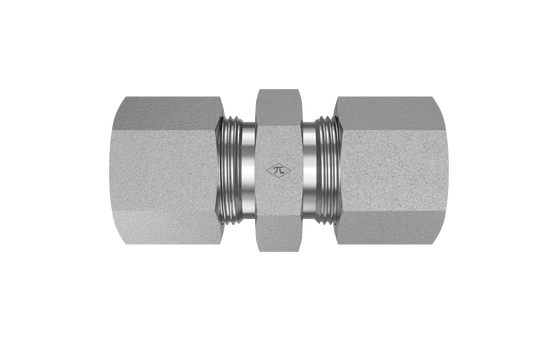

C2403-LH-12-12

3/4" Flareless Bite Type x 3/4" Flareless Bite Type

C2403-LH-12-12 is a 3/4" Flareless Bite Type x 3/4" Flareless Bite Type in the C2403-LH Series. For joining two flareless bite-type tubes; the larger hex provides additional wrench grip during installation.

  • Steel
  • Trivalent Zinc
  • Union
$33.76
(0) Write a Review

Product Details

Connection A
TypeFlareless Bite Type
Tube OD3/4"
StandardSAE J514
Thread Type1-1/16-12 UN
Connection B
TypeFlareless Bite Type
Tube OD3/4"
StandardSAE J514
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion
Weight0.61 lb
Cross References
Aeroquip7306X12
Parker12 LHBU-S
SAE Ref.SAE J514 12-12 08A0119C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
