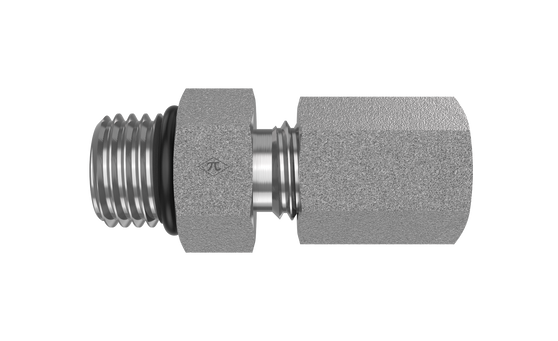

C6400-12-16-O

3/4" Flareless Bite Type x 1-5/16-12 Male ORB

C6400-12-16-O is a 3/4" Flareless Bite Type x 1-5/16-12 Male ORB in the C6400-O Series. SAE J514 Flareless Tube Port Connector.

  • Steel
  • Trivalent Zinc
$19.68
(0) Write a Review

Product Details

Connection A
TypeFlareless Bite Type
Tube OD3/4"
StandardSAE J514
Connection B
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
