C6803-12-12-12-NWO-FG

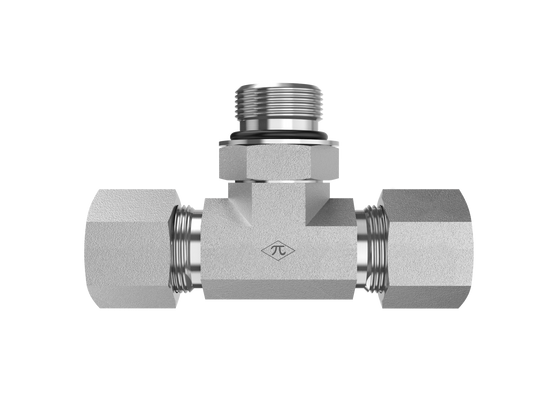

3/4" Flareless Bite Type x 3/4" Flareless Bite Type x 1-1/16-12 Male Adjustable ORB

C6803-12-12-12-NWO-FG is a 3/4" Flareless Bite Type x 3/4" Flareless Bite Type x 1-1/16-12 Male Adjustable ORB in the C6803-NWO-FG Series. SAE J514 Flareless Tube Adjustable Port Branch Tee.

  • Steel
  • Trivalent Zinc
$74.39
(0) Write a Review

Product Details

Connection A
TypeFlareless Bite Type
Tube OD3/4"
StandardSAE J514
Connection B
TypeFlareless Bite Type
Tube OD3/4"
StandardSAE J514
Connection C
TypeMale Adjustable ORB
Port Size1-1/16-12
StandardSAE J1926
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
