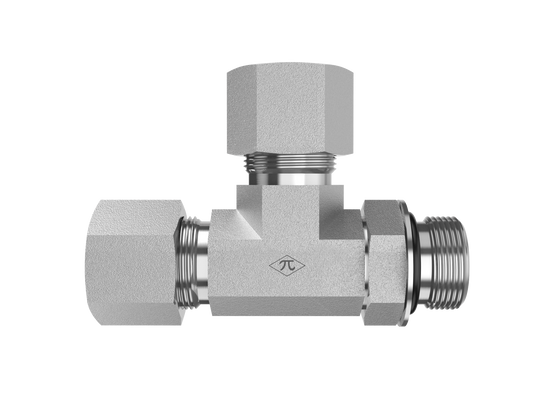

Google Merchant product image

C6804-16-16-16-NWO-SS

1" Flareless Bite Type x 1-5/16-12 Male Adjustable ORB x 1" Flareless Bite Type

C6804-16-16-16-NWO-SS is a 1" Flareless Bite Type x 1-5/16-12 Male Adjustable ORB x 1" Flareless Bite Type in the C6804-NWO-FG Series. SAE J514 Flareless Tube Adjustable Port Run Tee.

  • Stainless Steel
  • None
$258.79
(0) Write a Review

Product Details

Connection A
TypeFlareless Bite Type
Tube OD1"
StandardSAE J514
Connection B
TypeMale Adjustable ORB
Port Size1-5/16-12
StandardSAE J1926
Connection C
TypeFlareless Bite Type
Tube OD1"
StandardSAE J514
Connection D
Specifications
MaterialStainless Steel
PlatingNone
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
