HGW HYDRAULICS

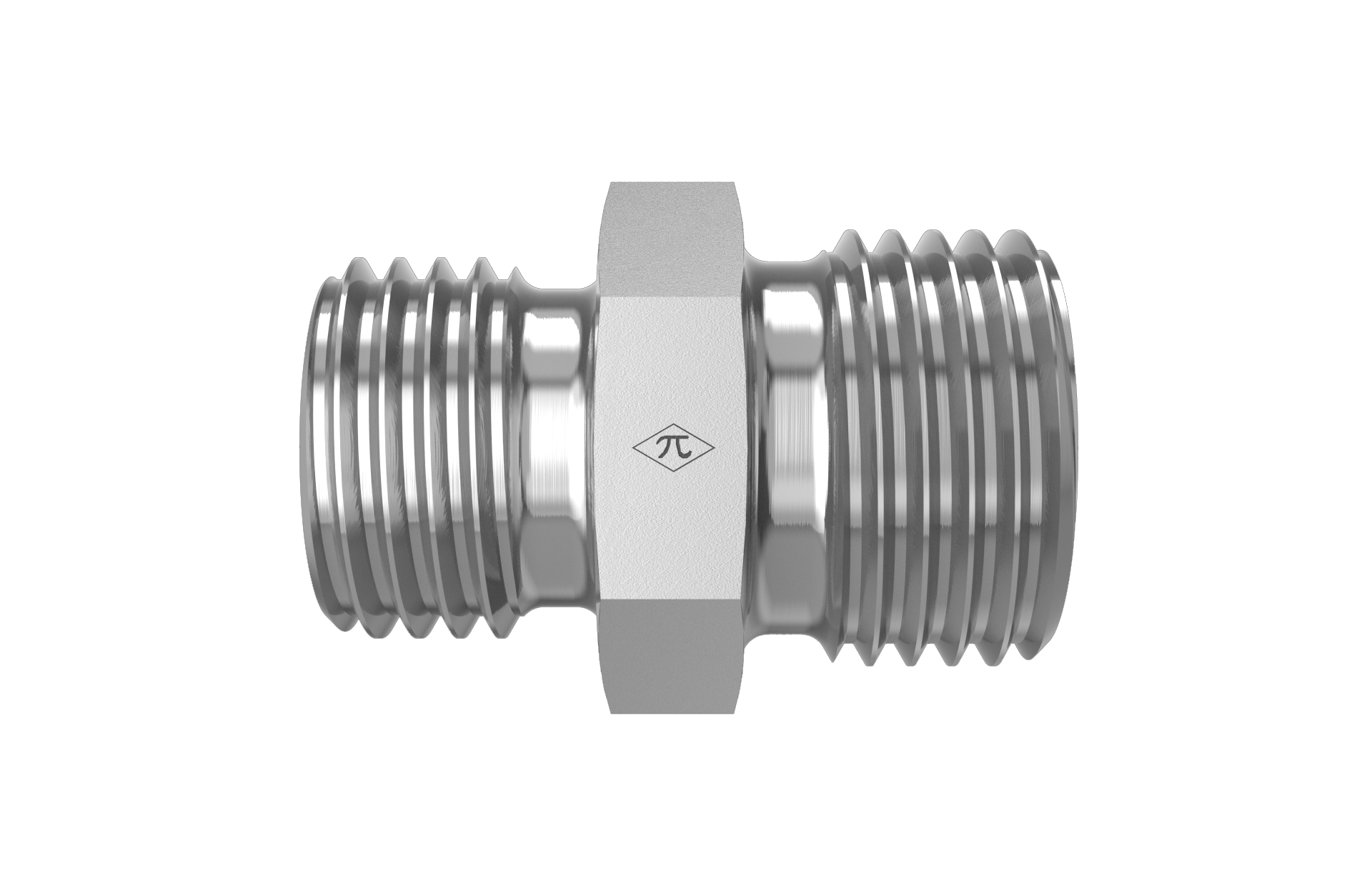

D2403-L35-L22-SS-X

35mm Male DIN x 22mm Male DIN

D2403-L35-L22-SS-X is a 35mm Male DIN x 22mm Male DIN in the D2403-REDUCER-X Series. For connecting two metric tubes or lines of different sizes, already containing nuts and cutting rings, or for connecting to a female DIN 2353 connector.

  • Stainless Steel
  • Reducer Union
  • None
$270.33
(0) Write a Review

Product Details

Connection A
TypeMale DIN
Tube OD35mm
StandardDIN 2353, ISO 8434-1
Thread TypeM45X2.0
Connection B
TypeMale DIN
Tube OD22mm
StandardDIN 2353, ISO 8434-1
Thread TypeM45X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer Union
Weight0.48 lb
PlatingNone
Cross References
ParkerGR35/22L71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
