HGW HYDRAULICS

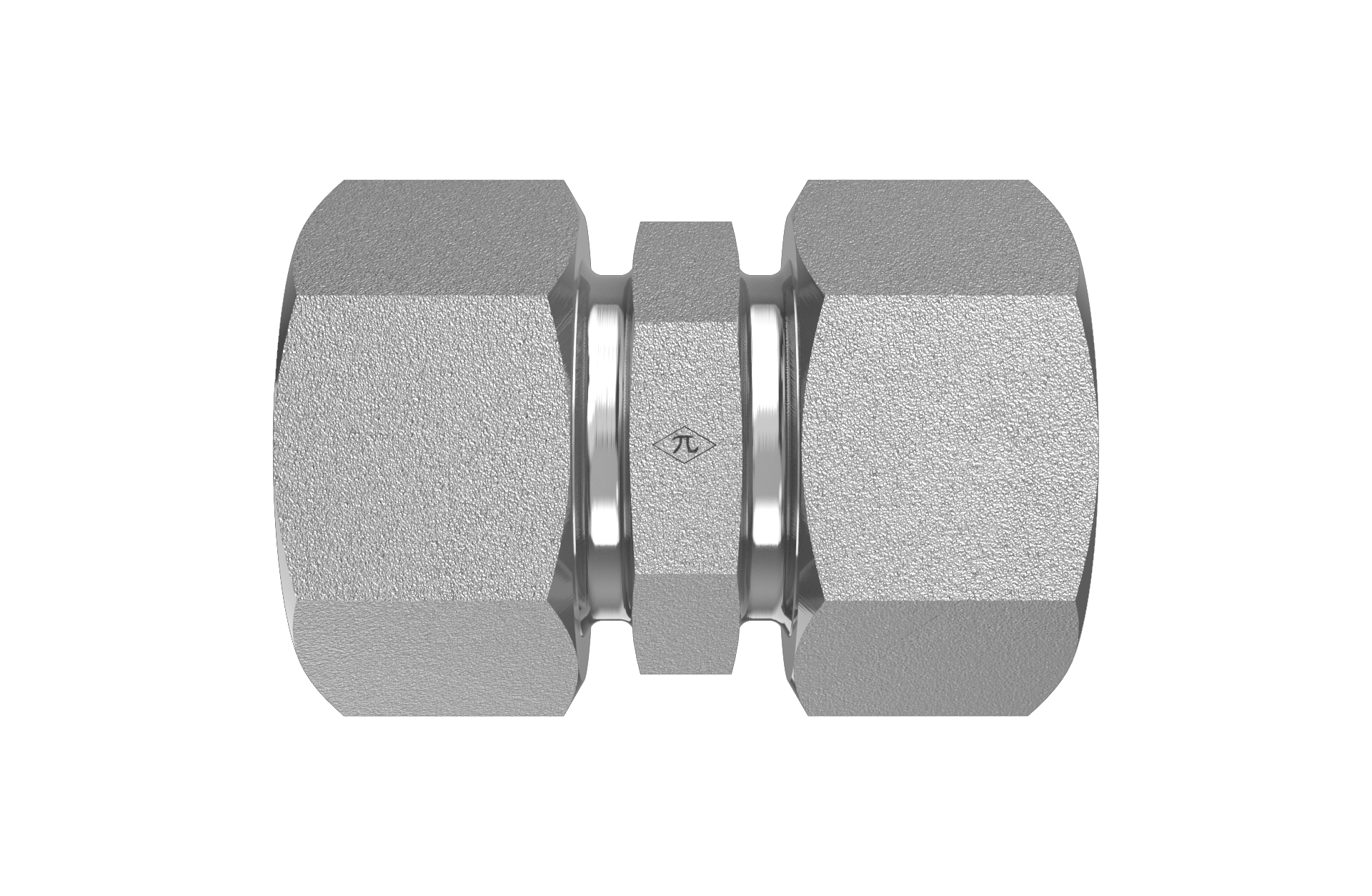

D2403-S20-S20

20mm DIN Tube x 20mm DIN Tube

D2403-S20-S20 is a 20mm DIN Tube x 20mm DIN Tube in the D2403-EQUAL Series. For connecting two metric tubes or lines of equal size.

  • Steel
  • Zinc Nickel
  • Union
$36.72
(0) Write a Review

Product Details

Connection A
TypeDIN Tube
Tube OD20mm
StandardDIN 2353, ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD20mm
StandardDIN 2353, ISO 8434-1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
ShapeUnion
Weight0.81 lb
Cross References
ParkerG20SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
