HGW HYDRAULICS

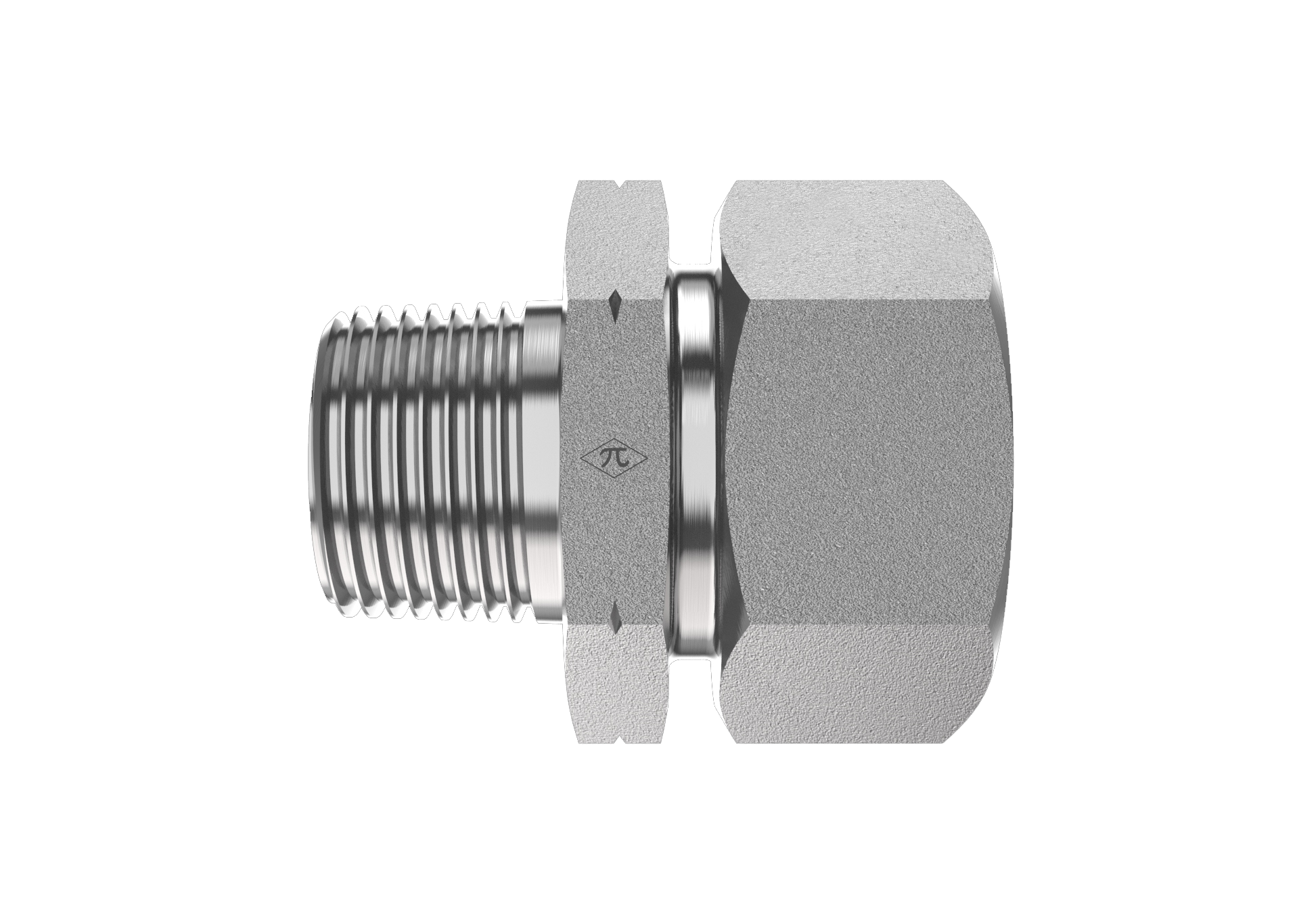

D2404-L22-06-SS

22mm DIN Tube x 3/8" Male NPT

D2404-L22-06-SS is a 22mm DIN Tube x 3/8" Male NPT in the D2404 Series. For connecting metric tube or line to a female NPT connection.

  • Stainless Steel
  • Male Connector
  • None
$160.55
(0) Write a Review

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeMale NPT
Pipe Size3/8"
StandardANSI/ASME B1.20.1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Connector
Weight0.42 lb
PlatingNone
Cross References
ParkerGE22L3/8NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
