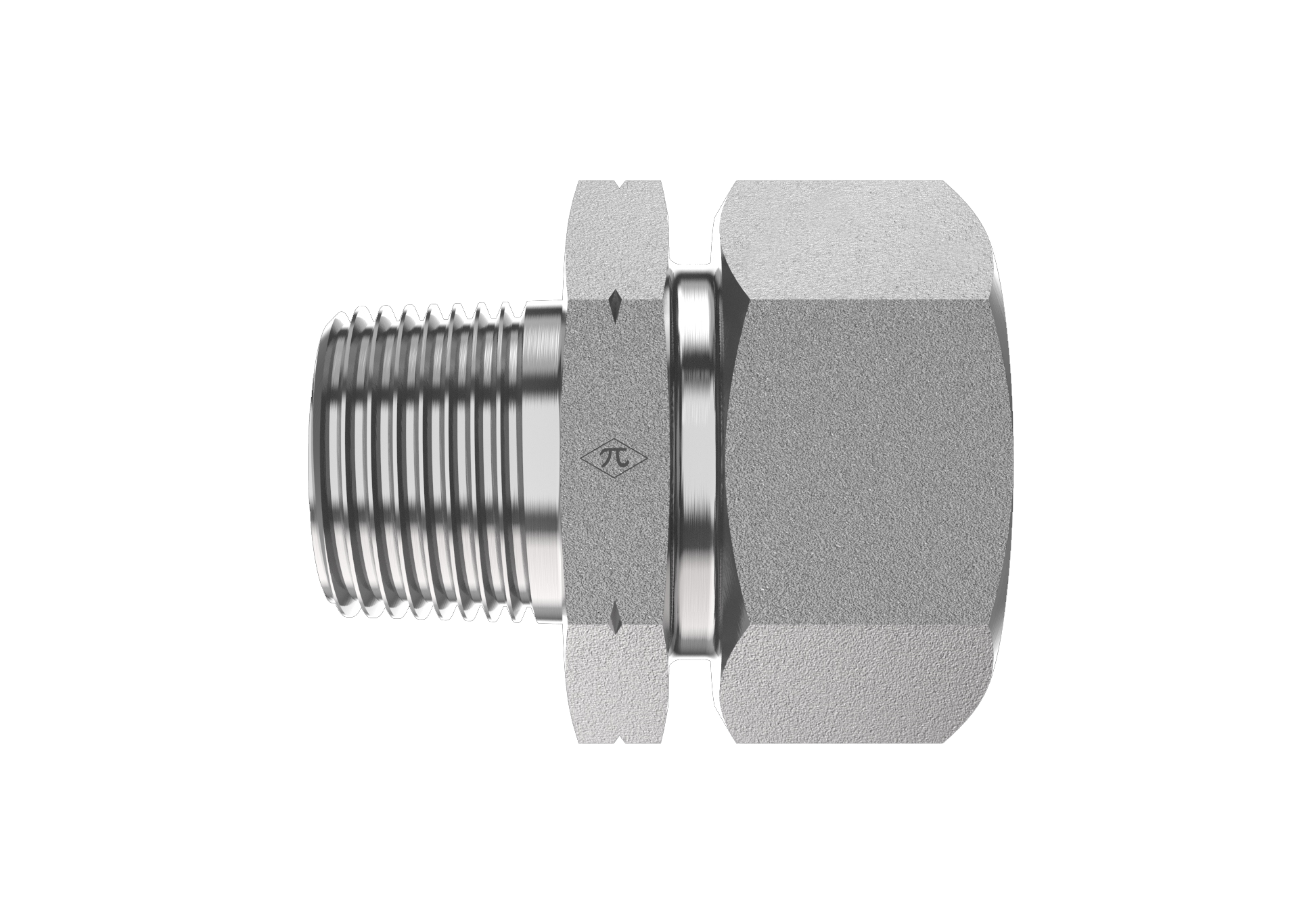

D2404-L22-12-X

22mm Male DIN x 3/4" Male NPT

D2404-L22-12-X is a 22mm Male DIN x 3/4" Male NPT in the D2404-X Series. For connecting metric tube or line, already containing a nut and cutting ring, to a female NPT connector.

  • Steel
  • Zinc Nickel
  • Male Connector
$13.76
(0) Write a Review
SKU:
D2404-L22-12-X

Product Details

Connection A
TypeMale DIN
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeMale NPT
Pipe Size3/4"
StandardANSI/ASME B1.20.1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.28 lb
ShapeMale Connector
Cross References
ParkerGE22L3/4NPTCFX

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
