HGW HYDRAULICS

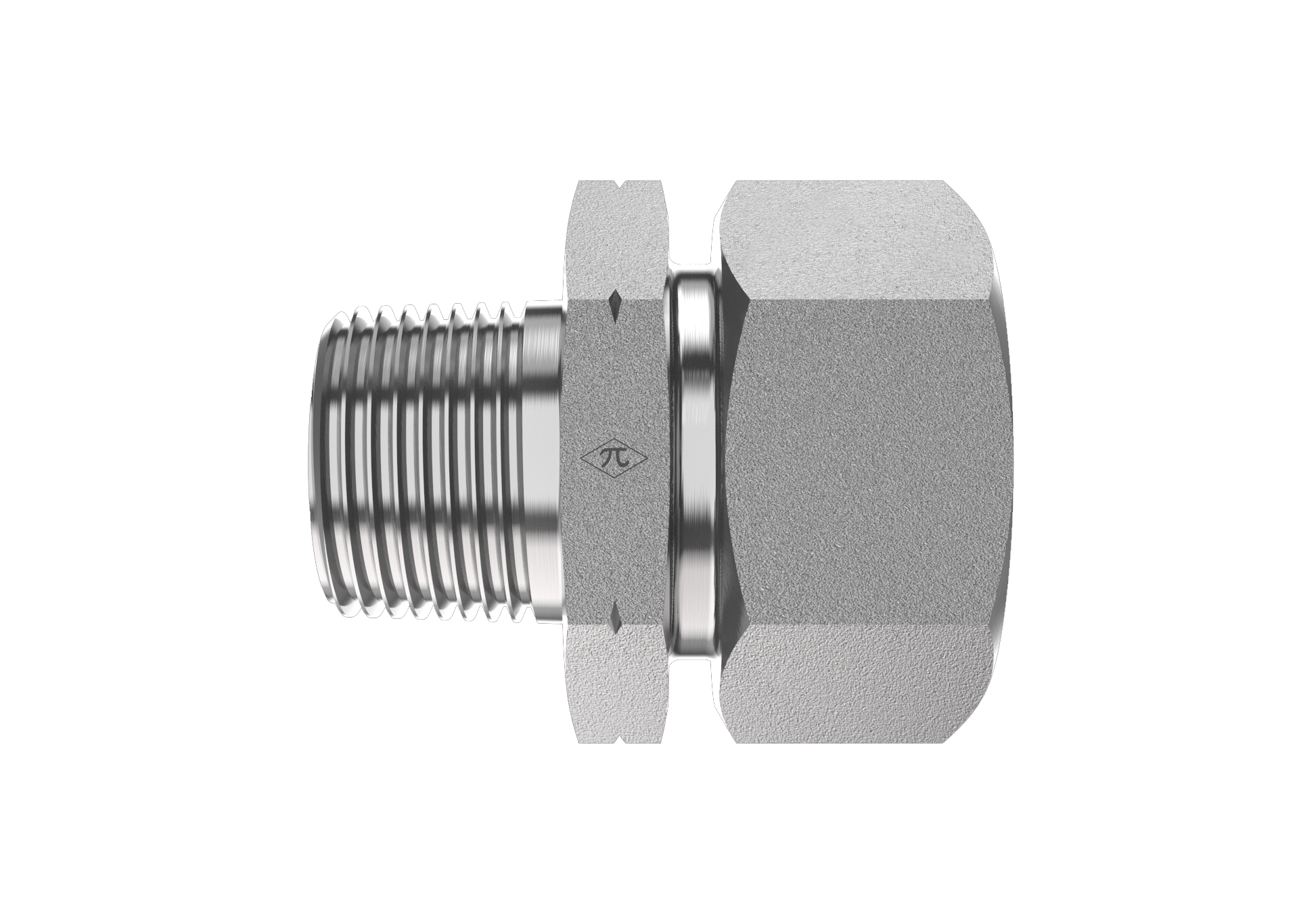

D2404-L22-16

22mm DIN Tube x 1" Male NPT

D2404-L22-16 is a 22mm DIN Tube x 1" Male NPT in the D2404 Series. For connecting metric tube or line to a female NPT connection.

  • Steel
  • Zinc Nickel
  • Male Connector
$109.58
(0) Write a Review

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeMale NPT
Pipe Size1"
StandardANSI/ASME B1.20.1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
ShapeMale Connector
Weight0.65 lb
Cross References
ParkerGE22L1NPTCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
