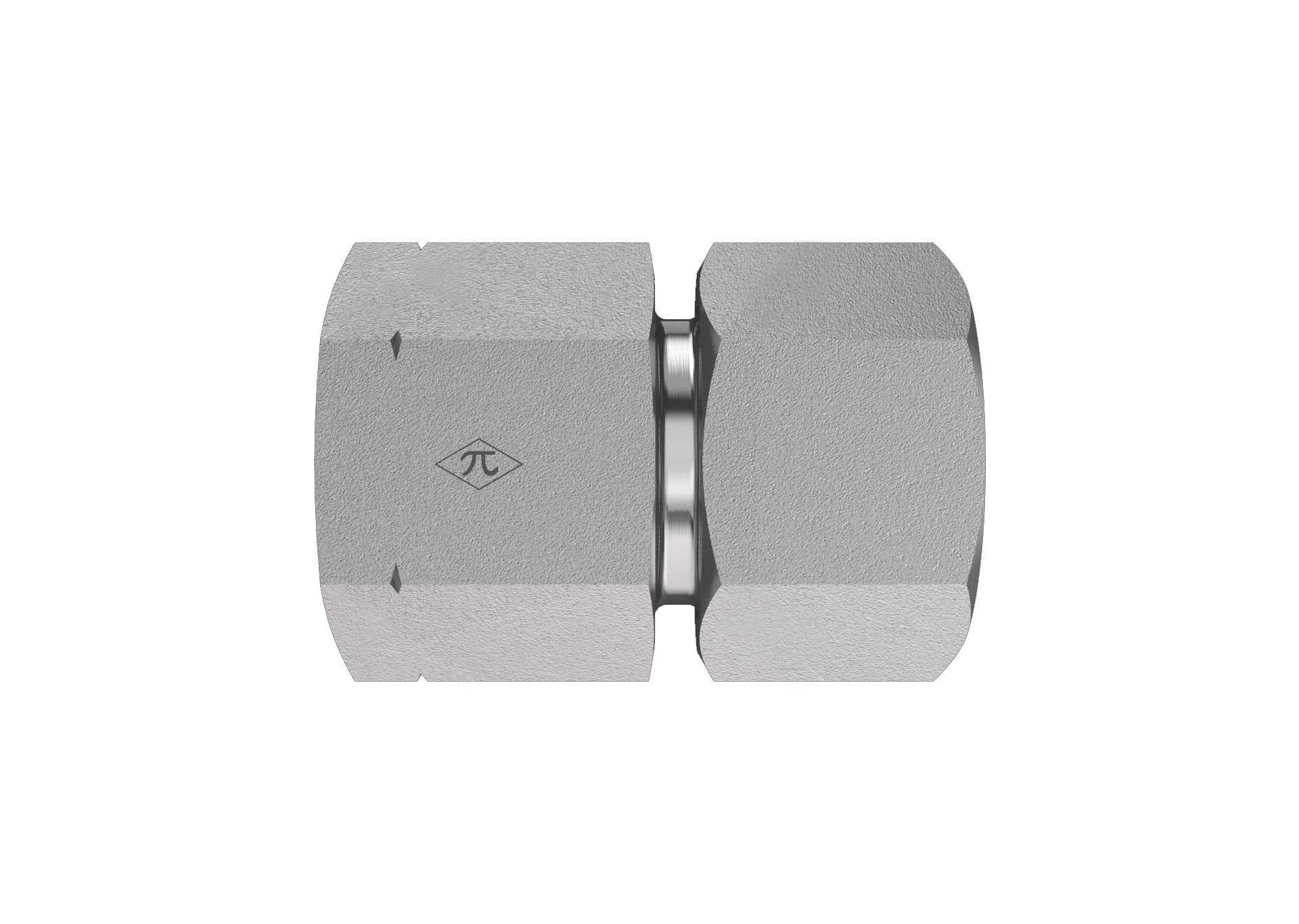

D2405-L06-02-SS

6mm DIN Tube x 1/8" Female NPT

D2405-L06-02-SS is a 6mm DIN Tube x 1/8" Female NPT in the D2405 Series. For connecting metric tube or line to a male NPT connector.

  • Stainless Steel
  • Female Connector
  • None
$73.70
(0) Write a Review
SKU:
D2405-L06-02-SS

Product Details

Connection A
TypeDIN Tube
Tube OD6mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM12X1.5
Connection B
TypeFemale NPT
Pipe Size1/8"
StandardANSI/ASME B1.20.1
Thread TypeM12X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.07 lb
ShapeFemale Connector
PlatingNone
Cross References
ParkerGAI06L1/8NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
