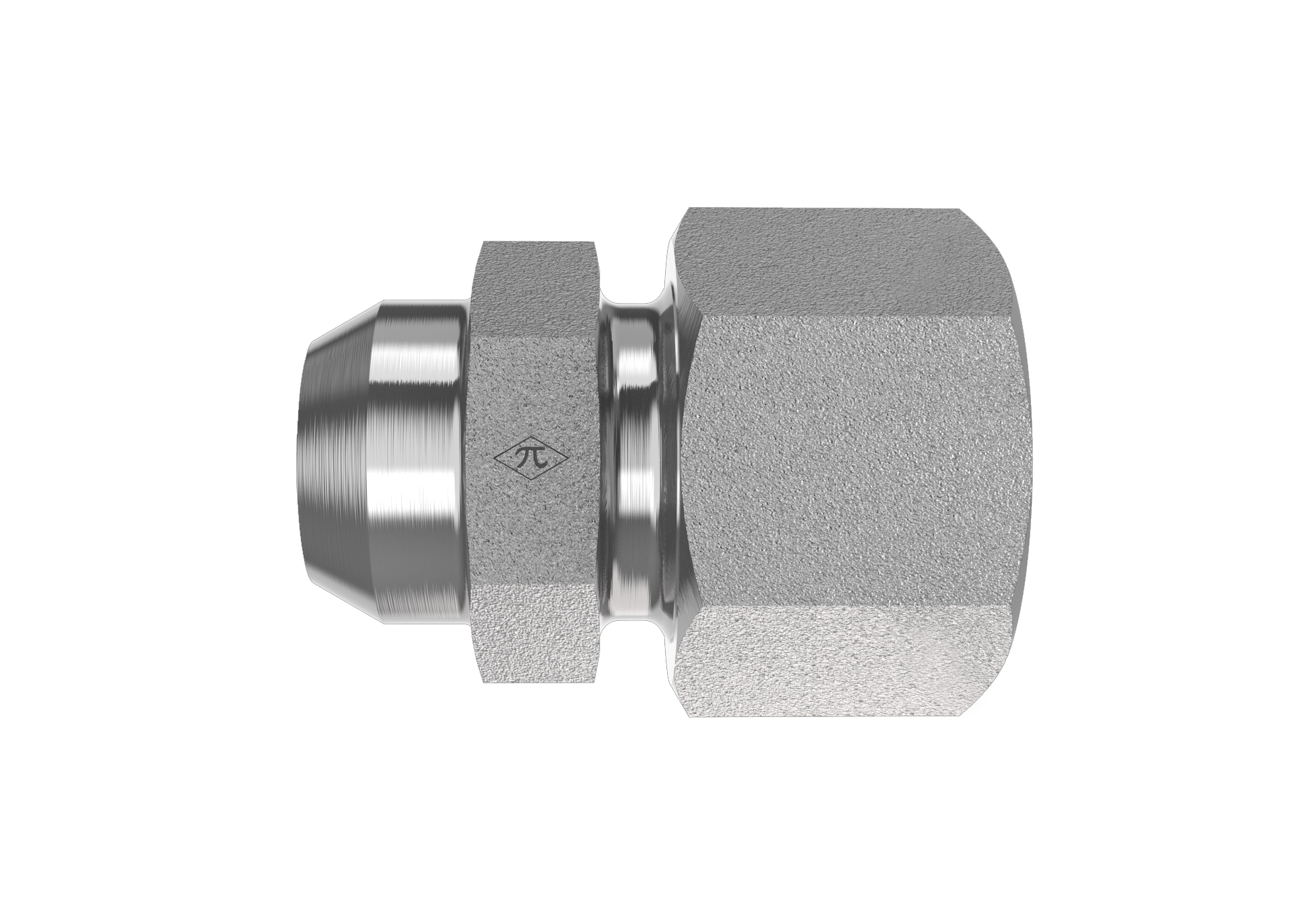

D2405-L10-04-SS-X

10mm Male DIN x 1/4" Female NPT

D2405-L10-04-SS-X is a 10mm Male DIN x 1/4" Female NPT in the D2405-X Series. For connecting metric tube or line, already containing a nut and cutting ring, to a male NPT connector.

  • Stainless Steel
  • Female Connector
  • None
$61.00
(0) Write a Review
SKU:
D2405-L10-04-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM16X1.5
Connection B
TypeFemale NPT
Pipe Size1/4"
StandardANSI/ASME B1.20.1
Thread TypeM16X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.10 lb
ShapeFemale Connector
PlatingNone
Cross References
ParkerGAI10L1/4NPT71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
