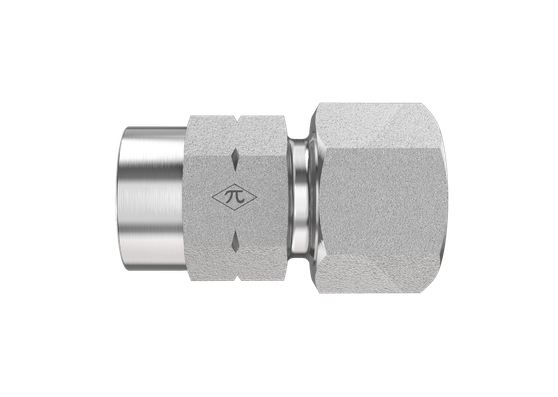

Google Merchant product image

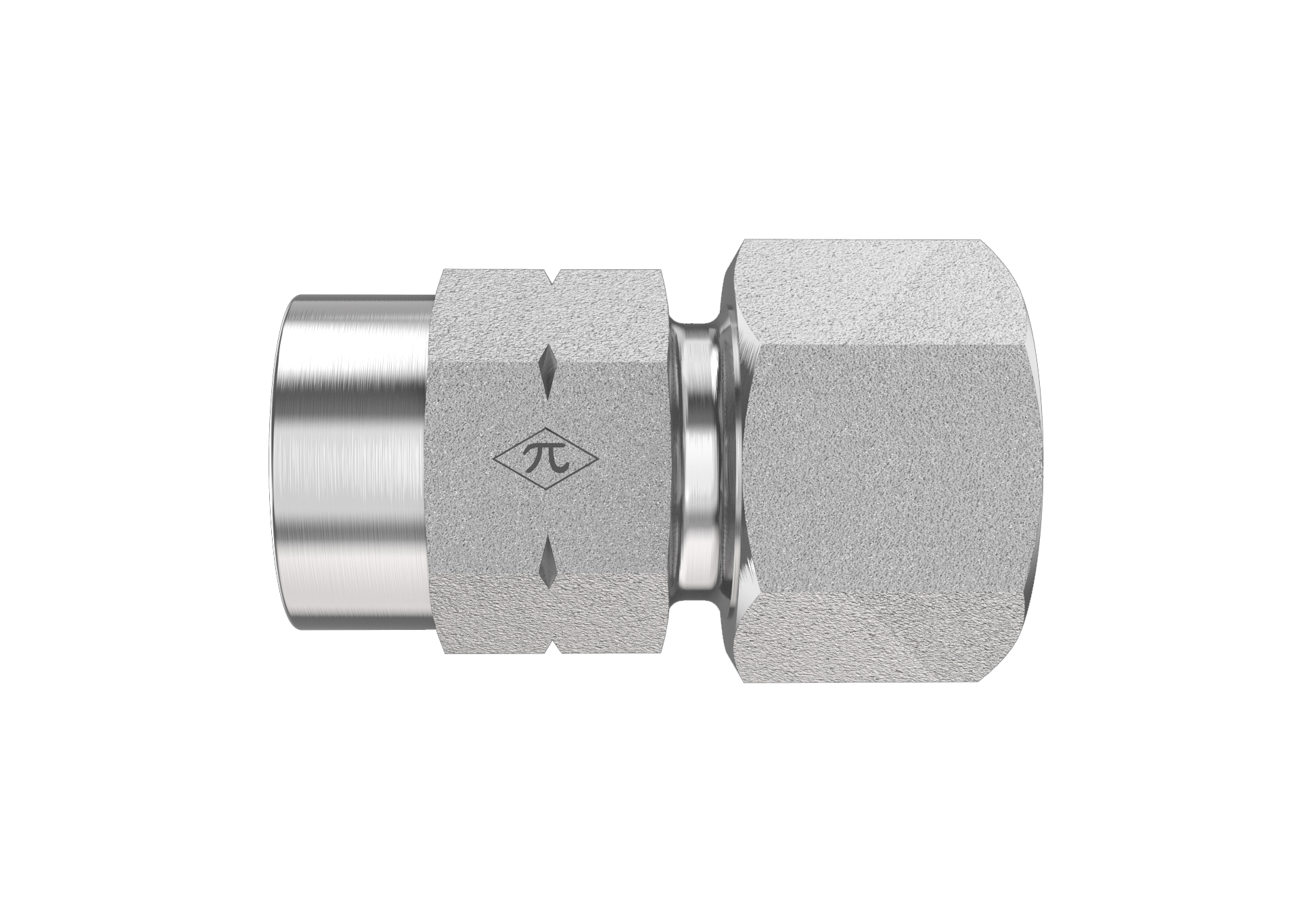

D2405-L12-04GP-SS

12mm Light DIN Tube x 1/4" Female NPT Direct Gauge Port

D2405-L12-04GP-SS is a 12mm Light DIN Tube x 1/4" Female NPT Direct Gauge Port in the D2405-GP Series. For connecting metric tube or line to a male NPT gauge.

  • Stainless Steel
  • Female Connector
  • None
$70.76
(0) Write a Review
SKU:
D2405-L12-04GP-SS

Product Details

Connection A
TypeDIN Tube
Tube OD12mm Light
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeFemale NPT Direct Gauge Port
StandardANSI/ASME B1.20.1
Port Size1/4"
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1 lb
ShapeFemale Connector
PlatingNone
Cross References
ParkerMAV12L1/4NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
