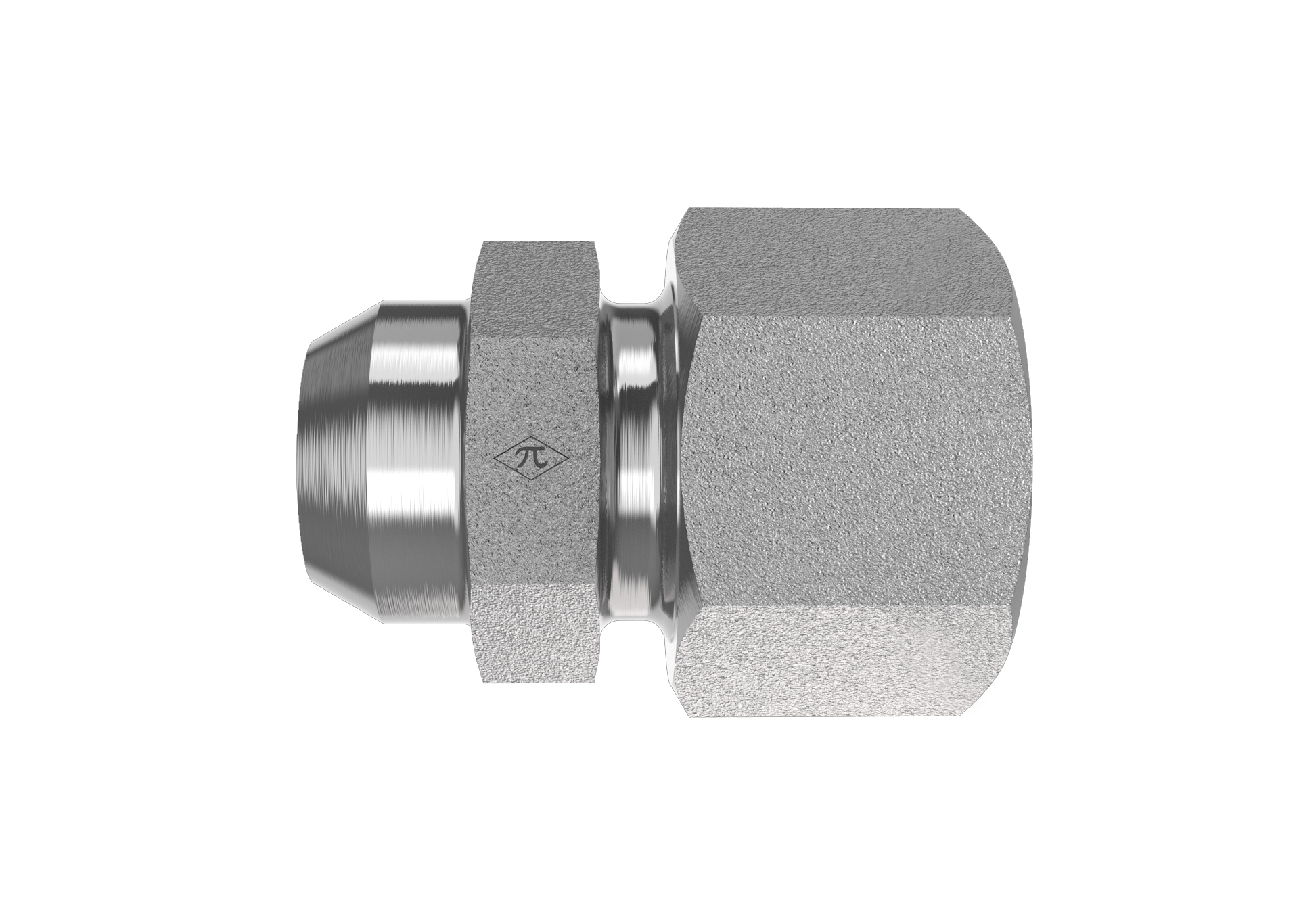

D2405-L28-16-SS-X

28mm Male DIN x 1" Female NPT

D2405-L28-16-SS-X is a 28mm Male DIN x 1" Female NPT in the D2405-X Series. For connecting metric tube or line, already containing a nut and cutting ring, to a male NPT connector.

  • Stainless Steel
  • Female Connector
  • None
$321.51
(0) Write a Review
SKU:
D2405-L28-16-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD28mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeFemale NPT
Pipe Size1"
StandardANSI/ASME B1.20.1
Thread TypeM36X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.56 lb
ShapeFemale Connector
PlatingNone
Cross References
ParkerGAI28L1NPT71X

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
