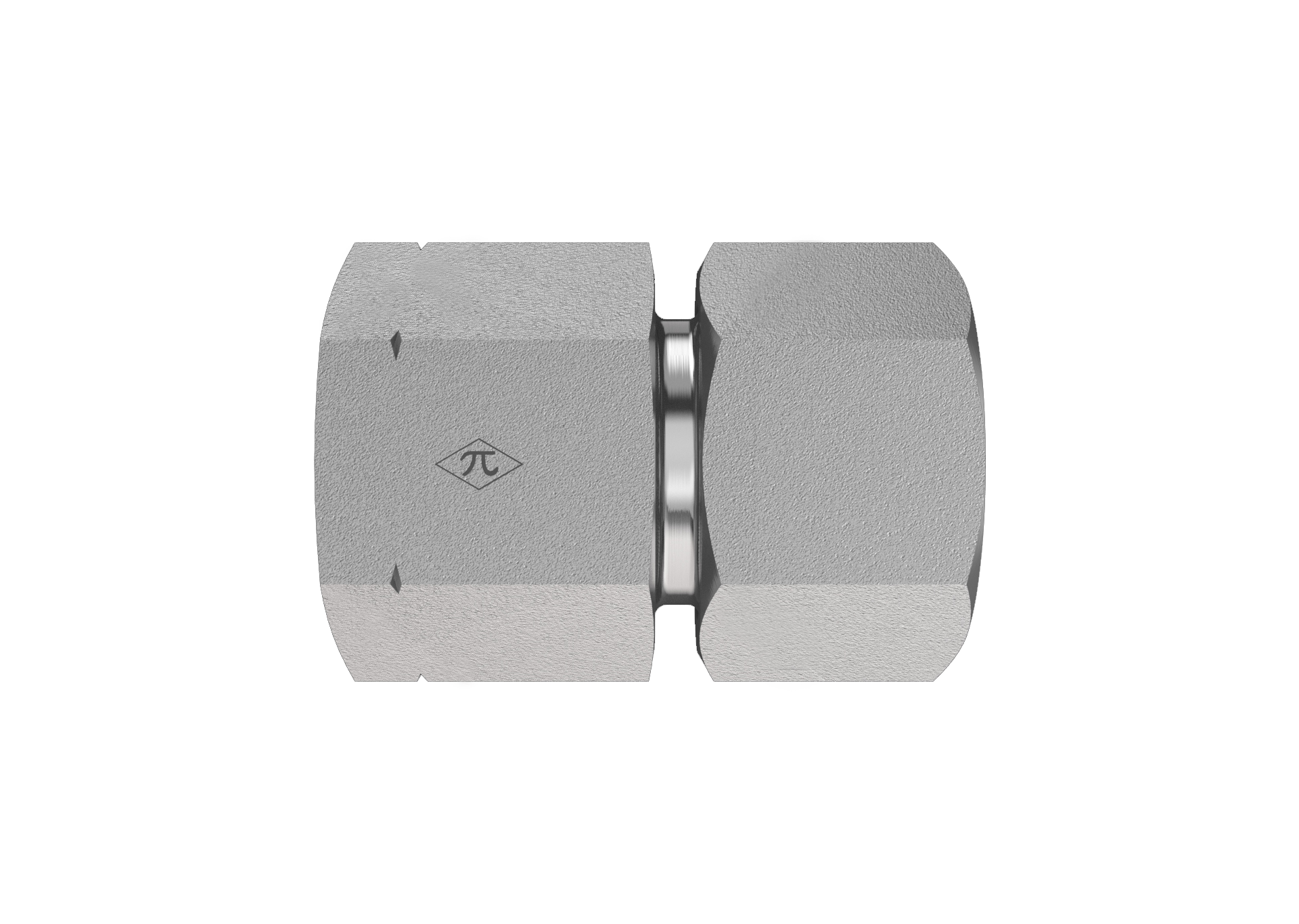

D2405-S16-08-SS

16mm DIN Tube x 1/2" Female NPT

D2405-S16-08-SS is a 16mm DIN Tube x 1/2" Female NPT in the D2405 Series. For connecting metric tube or line to a male NPT connector.

  • Stainless Steel
  • Female Connector
  • None
$152.52
(0) Write a Review
SKU:
D2405-S16-08-SS

Product Details

Connection A
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeFemale NPT
Pipe Size1/2"
StandardANSI/ASME B1.20.1
Thread TypeM24X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.38 lb
ShapeFemale Connector
PlatingNone
Cross References
ParkerGAI16S1/2NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
