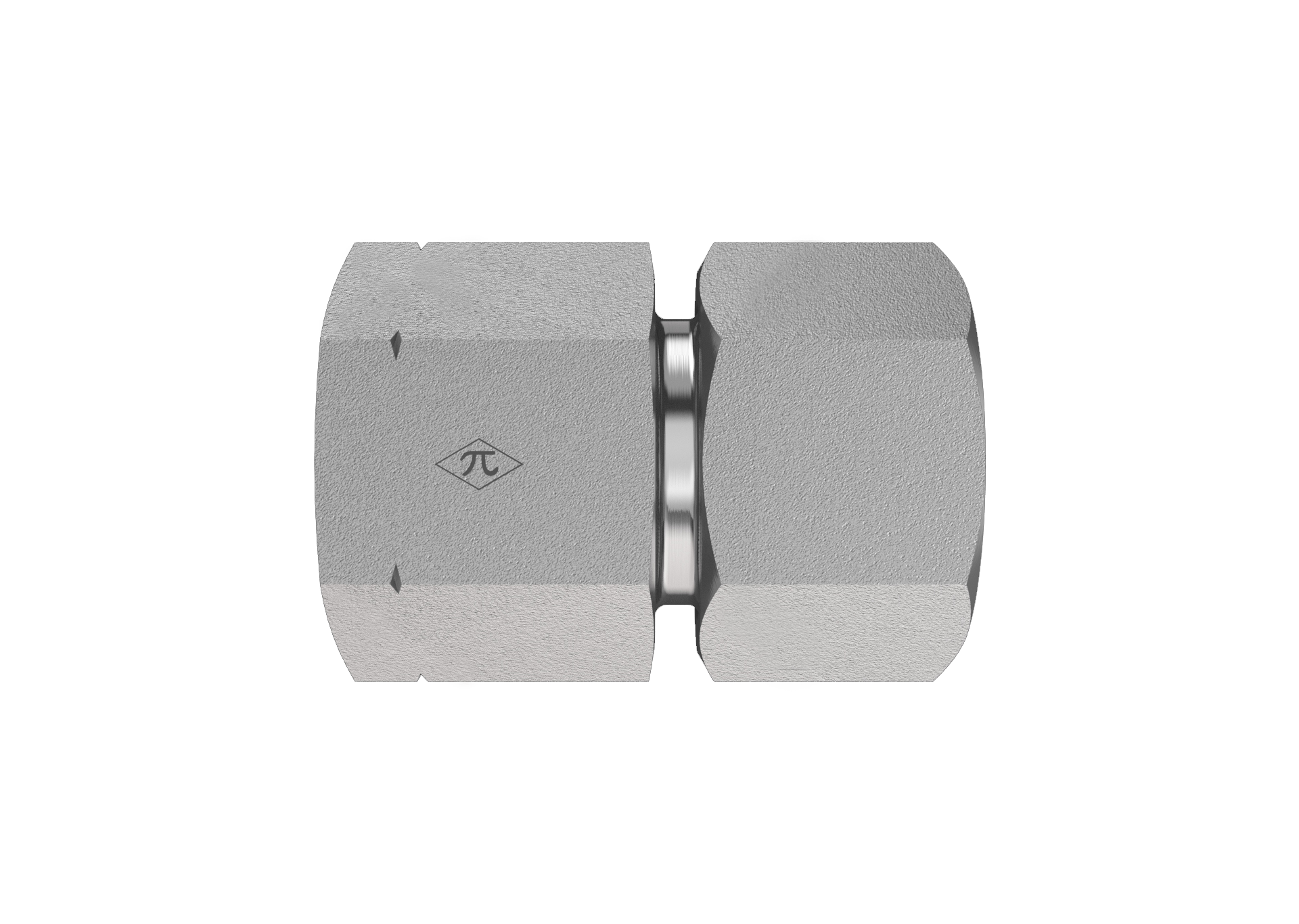

D2405-S25-16-SS

25mm DIN Tube x 1" Female NPT

D2405-S25-16-SS is a 25mm DIN Tube x 1" Female NPT in the D2405 Series. For connecting metric tube or line to a male NPT connector.

  • Stainless Steel
  • Female Connector
  • None
$434.75
(0) Write a Review
SKU:
D2405-S25-16-SS

Product Details

Connection A
TypeDIN Tube
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeFemale NPT
Pipe Size1"
StandardANSI/ASME B1.20.1
Thread TypeM36X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1.15 lb
ShapeFemale Connector
PlatingNone
Cross References
ParkerGAI25S1NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
