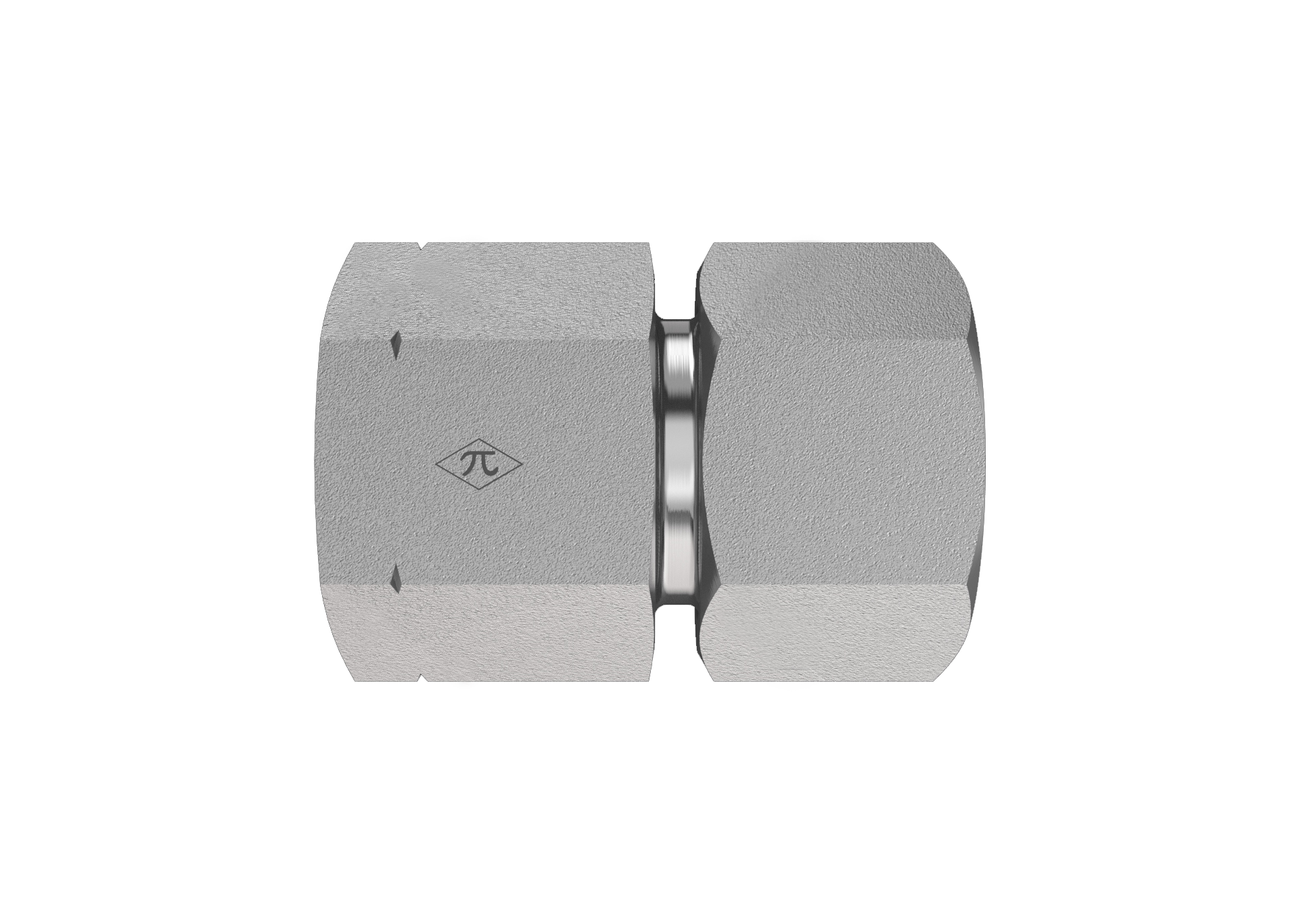

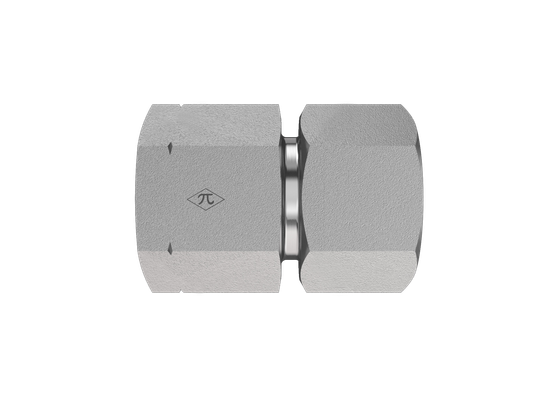

D2405-S38-24-SS

38mm DIN Tube x 1-1/2" Female NPT

D2405-S38-24-SS is a 38mm DIN Tube x 1-1/2" Female NPT in the D2405 Series. For connecting metric tube or line to a male NPT connector.

  • Stainless Steel
  • Female Connector
  • None
$812.79
(0) Write a Review
SKU:
D2405-S38-24-SS

Product Details

Connection A
TypeDIN Tube
Tube OD38mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeFemale NPT
Pipe Size1-1/2"
StandardANSI/ASME B1.20.1
Thread TypeM52X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight2.26 lb
ShapeFemale Connector
PlatingNone
Cross References
ParkerGAI38S11/2NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
