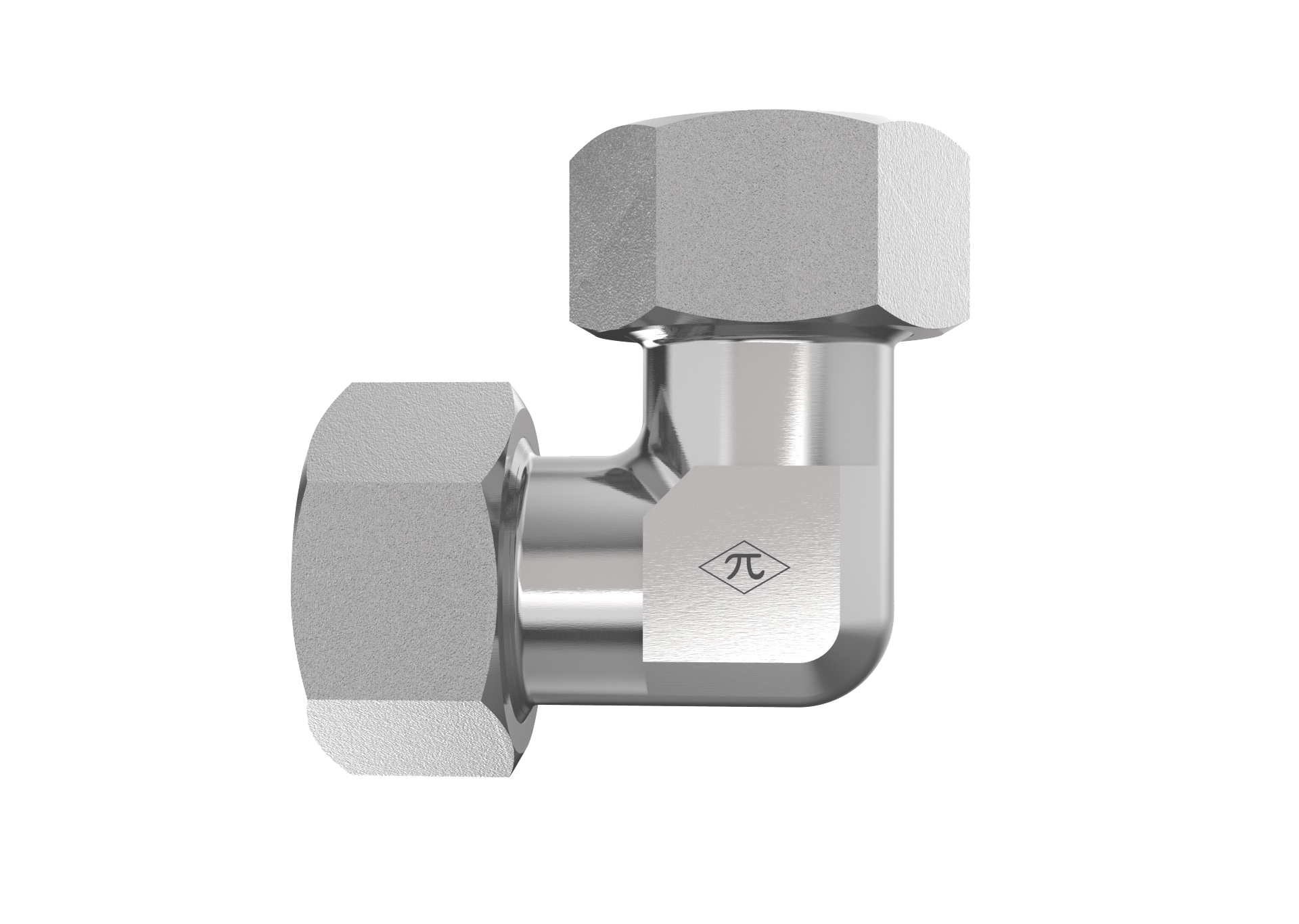

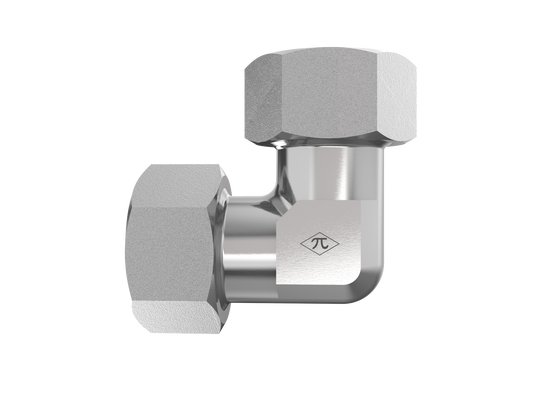

D2500 product image

D2500-E04-E04

4mm DIN Tube x 4mm DIN Tube

D2500-E04-E04 is a 4mm DIN Tube x 4mm DIN Tube in the D2500 Series. For connecting metric tubes or lines at a 90° angle.

  • Steel
  • Zinc Nickel
  • Union Elbow
$10.86
(0) Write a Review
SKU:
D2500-E04-E04

Product Details

Connection A
TypeDIN Tube
Tube OD4mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM08X1.0
Connection B
TypeDIN Tube
Tube OD4mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM08X1.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.04 lb
ShapeUnion Elbow
Cross References
ParkerW04LLCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
