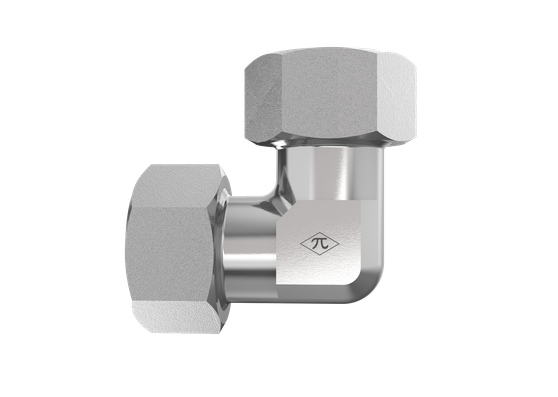

D2500 product image

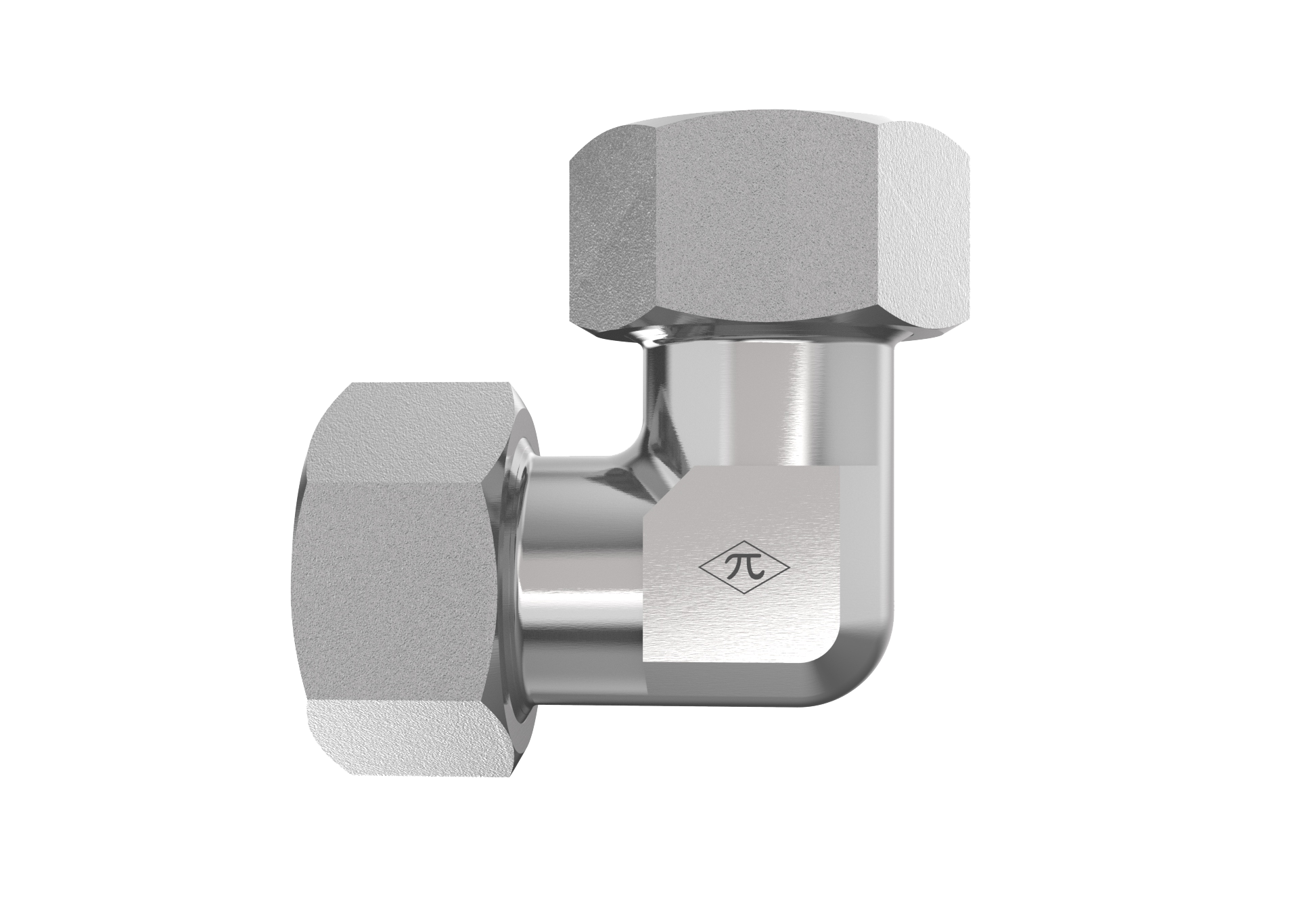

D2500-L18-L18

18mm DIN Tube x 18mm DIN Tube

D2500-L18-L18 is a 18mm DIN Tube x 18mm DIN Tube in the D2500 Series. For connecting metric tubes or lines at a 90° angle.

  • Steel
  • Zinc Nickel
  • Union Elbow
$35.40
(0) Write a Review
SKU:
D2500-L18-L18

Product Details

Connection A
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection B
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.57 lb
ShapeUnion Elbow
Cross References
ParkerW18LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
