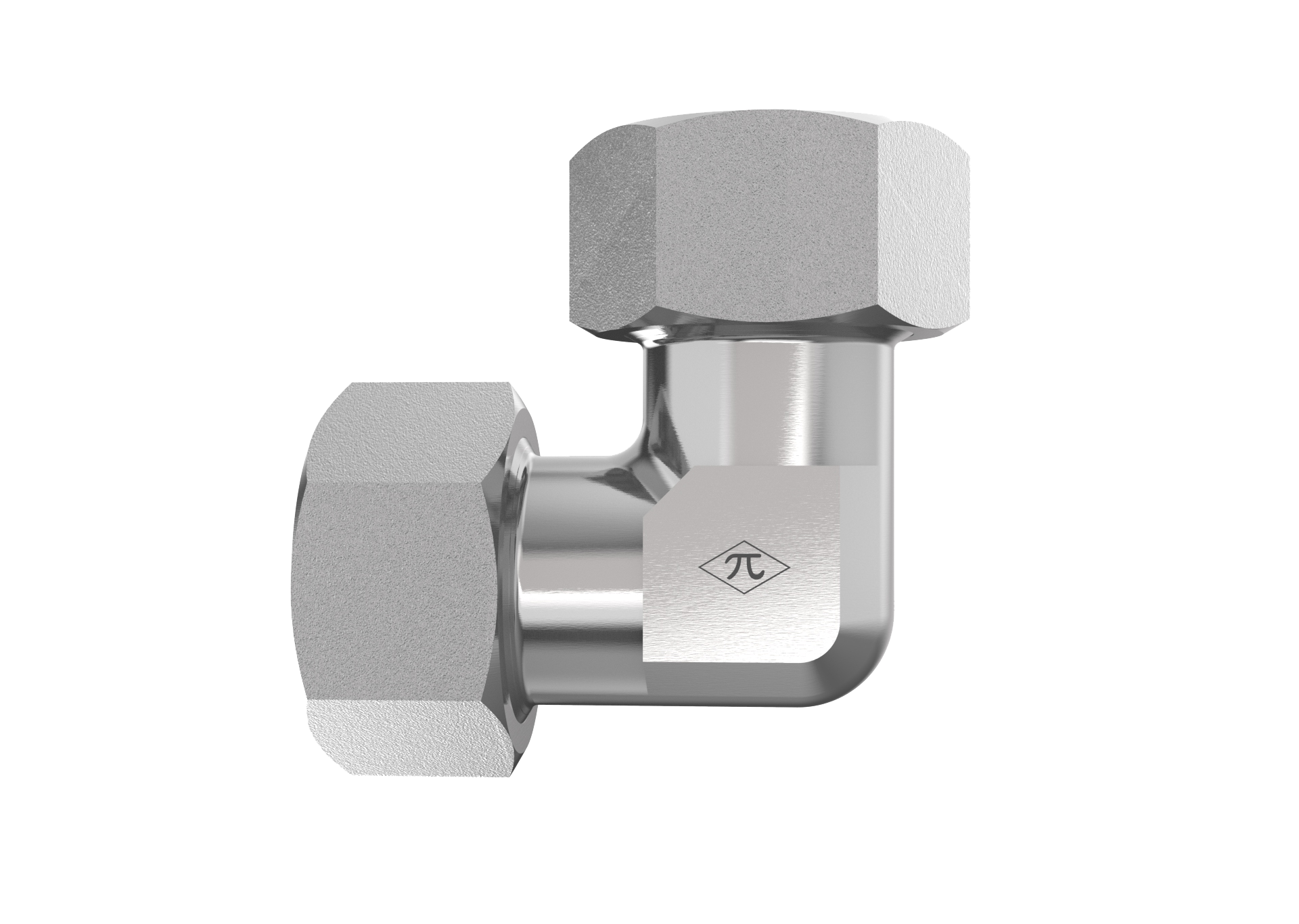

D2500 product image

D2500-L22-L22-SS

22mm DIN Tube x 22mm DIN Tube

D2500-L22-L22-SS is a 22mm DIN Tube x 22mm DIN Tube in the D2500 Series. For connecting metric tubes or lines at a 90° angle.

  • Stainless Steel
  • Union Elbow
  • None
$257.98
(0) Write a Review
SKU:
D2500-L22-L22-SS

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.78 lb
ShapeUnion Elbow
PlatingNone
Cross References
ParkerW22L71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
