D2500 product image

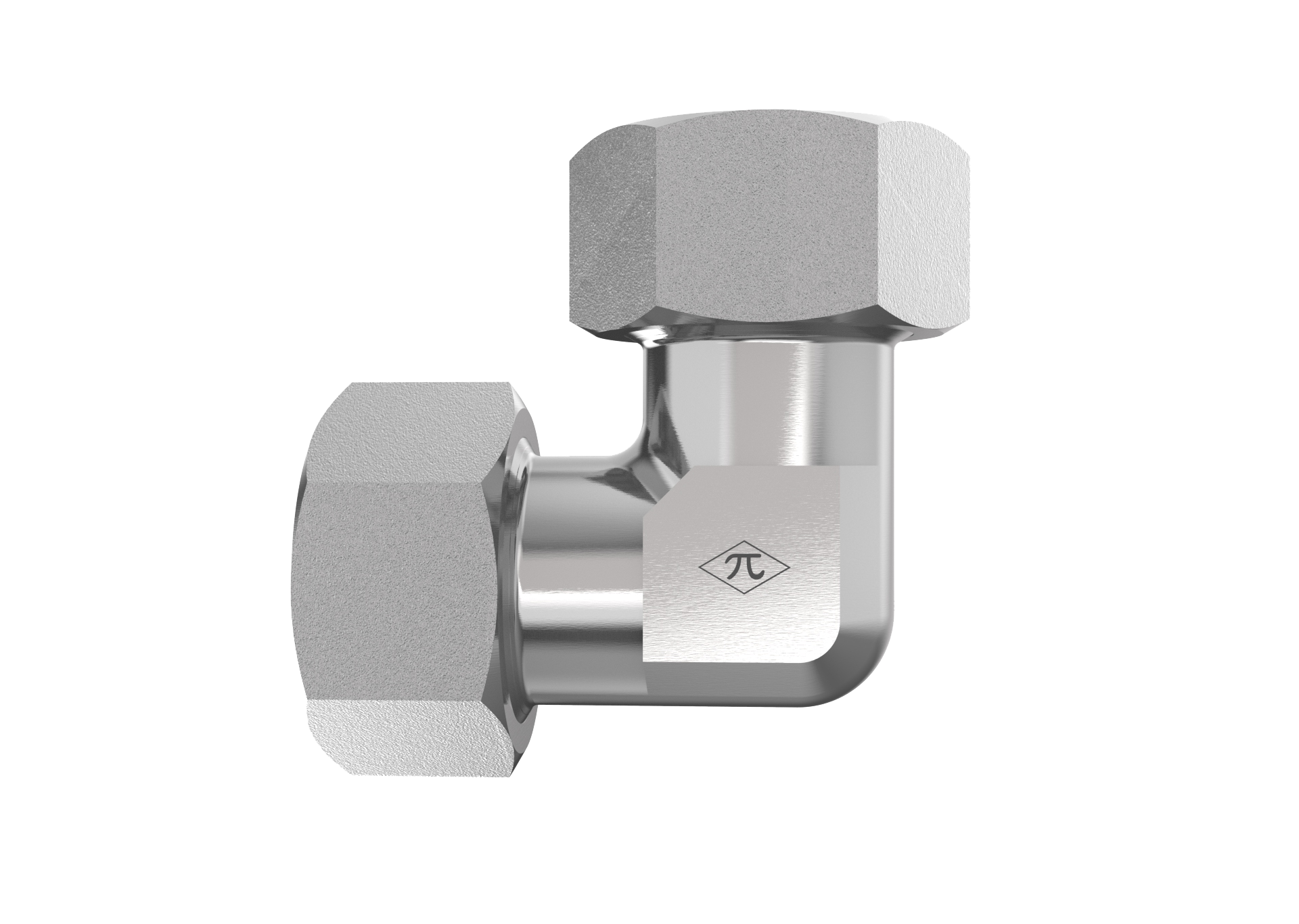

D2500-L22-L22

22mm DIN Tube x 22mm DIN Tube

D2500-L22-L22 is a 22mm DIN Tube x 22mm DIN Tube in the D2500 Series. For connecting metric tubes or lines at a 90° angle.

  • Steel
  • Zinc Nickel
  • Union Elbow
$53.05
(0) Write a Review
SKU:
D2500-L22-L22

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.77 lb
ShapeUnion Elbow
Cross References
ParkerW22LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
