D2500-L28-L15-X

28mm Male DIN x 15mm Male DIN

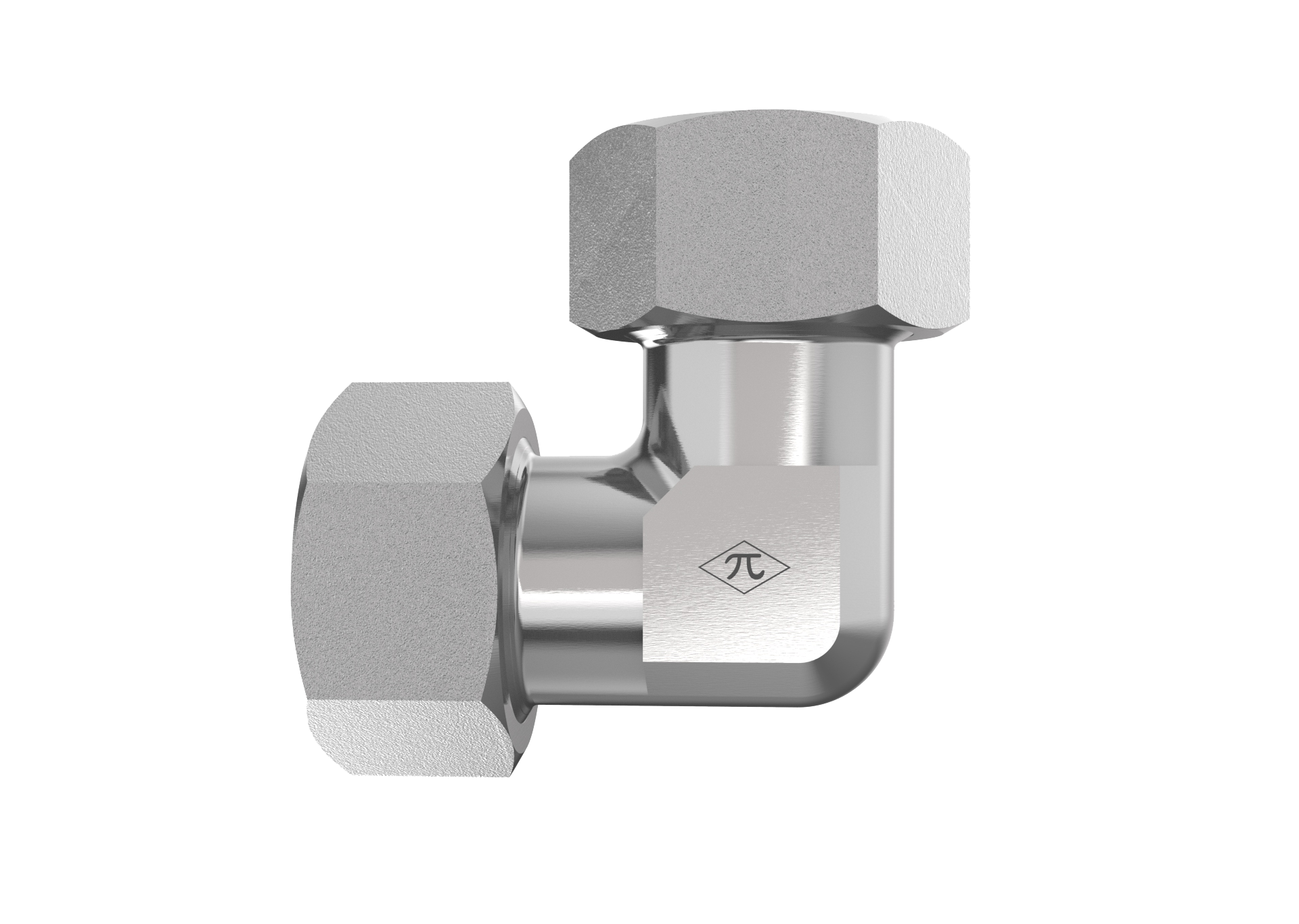

D2500-L28-L15-X is a 28mm Male DIN x 15mm Male DIN in the D2500-X Series. For connecting metric tubes or lines, already containing nuts and cutting rings, at a 90° angle.

  • Steel
  • Zinc Nickel
  • Union Elbow
$59.04
(0) Write a Review
SKU:
D2500-L28-L15-X

Product Details

Connection A
TypeMale DIN
Tube OD28mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeMale DIN
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.37 lb
ShapeUnion Elbow
Cross References
ParkerW28/15LCFX

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
